IKA 0004499700 – PT 100.53 SafeCoat Coated Temperature Sensor Coating: SafeCoat

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

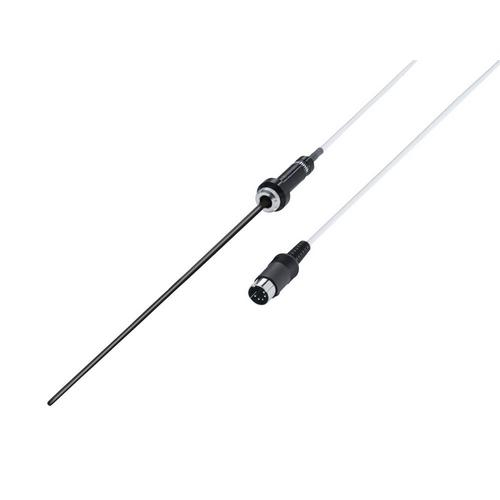

IKA Works, 0004499700, PT 100.53 Temperature sensor, coated

Temperature sensor for RET control-visc and RET control-visc white, coated with SafeCoat, Ø 3 mm, 230 mm length.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Probe type	Immersion probe
Sensor type	PT100 (DIN IEC 751 Class A)
Accuracy of temperature measurement	± (0,15 + 0,2% o.Mv.) K
Response time t9/10	10 sec
Temperature measuring range	-20 - +260 °C
Material of probe tube	stainless steel 1.4571
Coating of probe tube	SafeCoat
Diameter of probe tube	3 mm
Length of probe tube	230 mm
Immersion depth min.	25 mm
Cable length	1500 mm
Probe connection	DIN 41524
Weight	0.0547 kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Probe type	Immersion probe
Sensor type	PT100 (DIN IEC 751 Class A)
Accuracy of temperature measurement	± (0,15 + 0,2% o.Mv.) K
Response time t9/10	10 sec
Temperature measuring range	-20 - +260 °C
Material of probe tube	stainless steel 1.4571
Coating of probe tube	SafeCoat
Diameter of probe tube	3 mm
Length of probe tube	230 mm
Immersion depth min.	25 mm
Cable length	1500 mm
Probe connection	DIN 41524
Weight	0.0547 kg

Note: Please read description carefully. Do not base your order on the picture presented.
