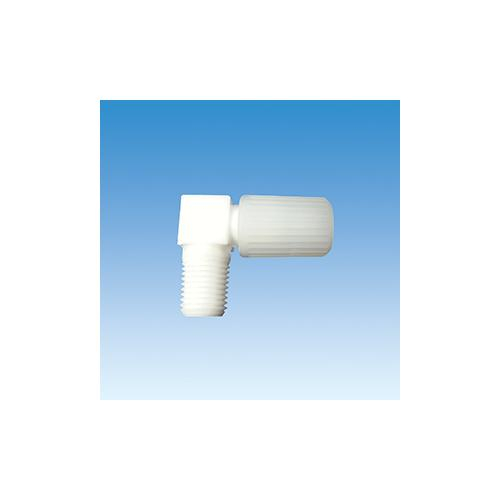

Ace Glass Inc 12715-26 1" Tube PTFE Compression Elbow to 1/2" Male NPT

1" Tube PTFE Compression Elbow to 1/2" Male NPT

Features:

• IPS PTFE Tube Compression Elbow to Male NPT.
• Body and ferrules made of virgin PTFE.
• The nut and ferrule-gripper is made of PVDF.
• Performance at ambient room conditions: 120 PSI for 1/16" fittings linear decreasing to 80 PSI for 3/4" fittings and 60 PSI for fittings larger than 3/4".
• Performance at elevated temperatures up to 85C/185F: 90 PSI for 1/16" fittings linear decreasing to 60 PSI for 3/4" fittings and 40 PSI for fittings larger than 3/4".
