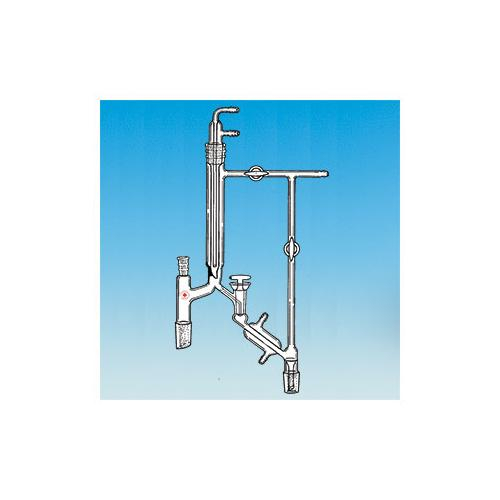

Ace Glass, 6609-10, 6609 24/40 Distilling Head, Thermometer Joint 10/30 For 76 Mm
6609-10 24/40 distilling head
With finger type condenser and Newman type stopcock for reflux control. Stopcock manifold and reflux stopcock can be used to isolate head from receiver so that receiver contents can be removed without disturbing the vacuum in the system. Both column joint and receiver joints are 24/40. Thermometer joint is 10/30 for 76 mm immersion 8315 thermometer. Finger condenser is approximately 20.3cm long with 24/40 joint. Newman type stopcock is 2mm bore; all others are 3mm. Hose connections are size C & D.
We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.
Note: Please read description carefully. Do not base your order on the picture presented.
