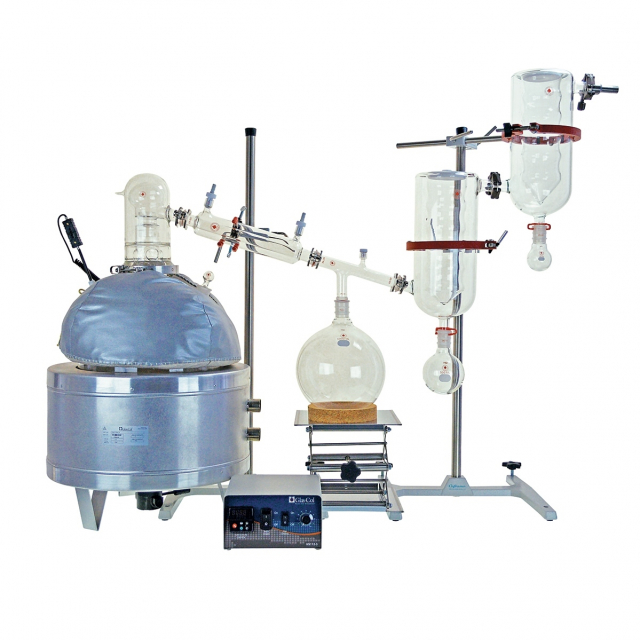

Ace Glass Inc 6817-20 20L Full Bore Short Path Distillation System

6817-20 Includes Only:

• 20L Flask, 100mm O-Ring Groove center
• (2) 29/42 sides 1 6946-32 Column
• 100mm, 35/25 O-Ring Ball
• Short Path Condenser 35/25, 275mm
• Short Path Receiver, Single, NW25 Vacuum Port
• 5L Round Flask, Heavy Wall, 29/42
• Vacuum Trap, 35/25, 29/42, NW25
• 500mL Round Flask, Heavy Wall, 29/42
• Vacuum Trap, 29/42, NW25
• 100mL Round Flask, Heavy Wall, 29/42
• 29/26, 7mm PTFE Thermometer Adapter
• 29/42 Glass Stopper
• Stainless Steel Flange Clamp, 100mm
• Joint Clip, Size 35
• Ace-Safe Tubing Connector, #11 to 3/8"
• Keck-Type Joint Clip, 29/42
• PTFE Vacuum Trap Lid
• High Temp NW Flange Clamp
• Glass to Glass NW Flange Gasket
• Stainless Steel NW Flange Adapter, NW25 to 3/4" Hose Barb
• Glass to Metal NW Flange Gasket
• Glas-Col Stirmantle, Dual Heating / Stirring, (3) 800w Outlets
• J-Kem J-Type Thermocouple Sensor
• J-Kem Thermocouple Extension Cord
• Glas-Col Aluminum Heating / Stirmantle, 22L
• Glas-Col Heating Top, 22L
• Caframo H-Base Support Stand
• Labjaws Clamp, 3-Prong
• Caframo Rod Mount Clamp
• Cork Ring
• Troemner Stainless Steel Lab-Lift
• Bolt Latch Clamp, 150mm

Features:

• Complete 20-liter Full Bore Short path distillation system utilizing a very deep vacuum and a large full-bore vacuum path.
• The system features a single distributor and a two-stage vacuum trap combination.
• Ready for attachment to a vacuum source.
