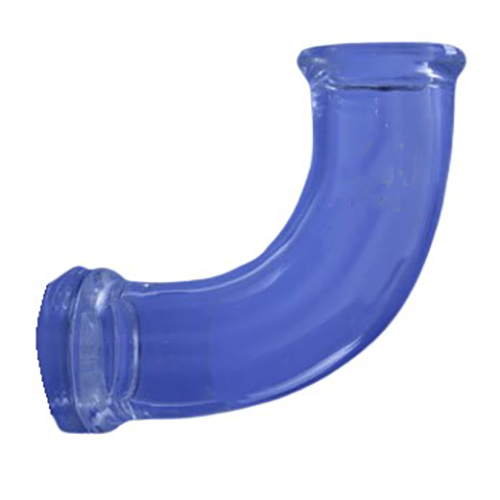

Ace Glass Inc 8833-32 – 1-1/2" Process Pipe Short Radius Elbow, 90 Degrees

GET $5 OFF ON YOUR FIRST PURCHASE

Help

Quote Cart

My Cart

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Pictures shown are for illustrative purpose only. Actual product may vary

Feature:

Beaded Process Pipe Elbow is made of borosilicate glass.
The pipe is durable in all acids except hydrofluoric or phosphoric acids with fluorides.
Some alkalies attack above 120°F and above a pH of 11.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

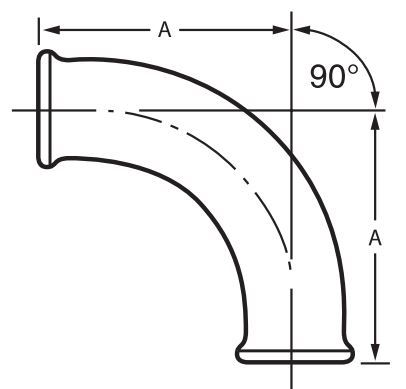

Dimensions

A: 3-1/2"
Size: 1-1/2"

Type Glass

Borosilicate

Working Pressure

100PSI (Room Temperature)

Test Pressure

1-1/2 Times Working Pressure

Operating Temperature (Maximum)

Freezing point to 450°C
Normal use - 230°C

Glass Thermal Expansion

32 x 10^-7/°C

Glass Thermal Conductivity

0.73 BTU/hr. ft.²/F°/ft. at 212°F

Glass Thermal Shock Differential

160°C

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

A: 3-1/2"
Size: 1-1/2"

Type Glass

Borosilicate

Working Pressure

100PSI (Room Temperature)

Test Pressure

1-1/2 Times Working Pressure

Operating Temperature (Maximum)

Freezing point to 450°C
Normal use - 230°C

Glass Thermal Expansion

32 x 10^-7/°C

Glass Thermal Conductivity

0.73 BTU/hr. ft.²/F°/ft. at 212°F

Glass Thermal Shock Differential

160°C

Note

Note: Please read description carefully. Do not base your order on the picture presented.
