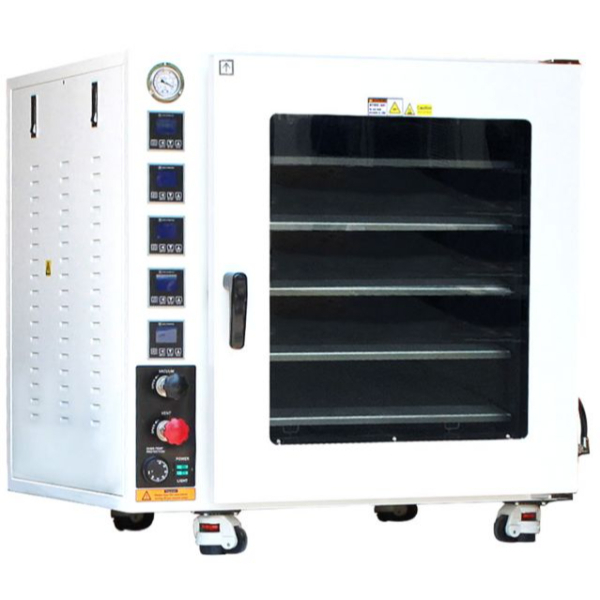

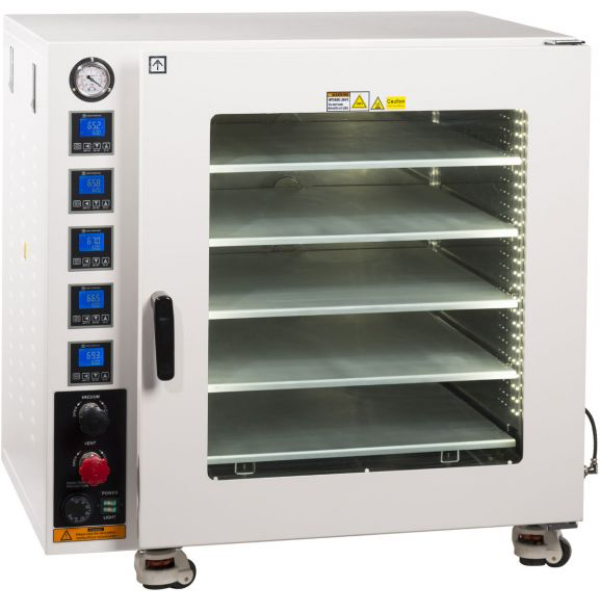

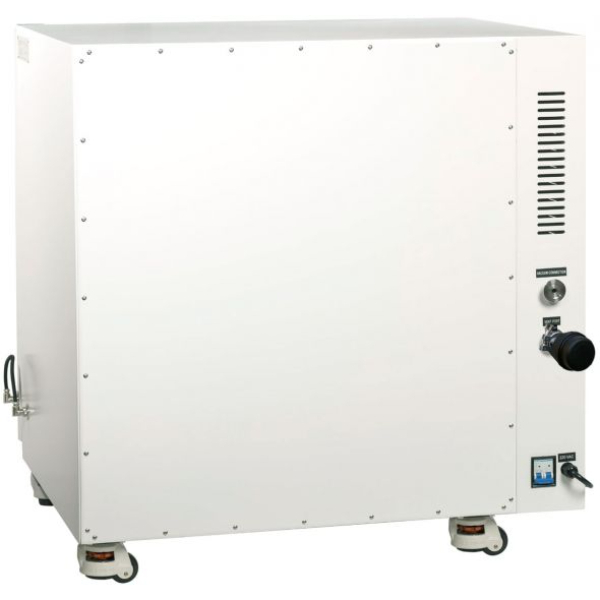

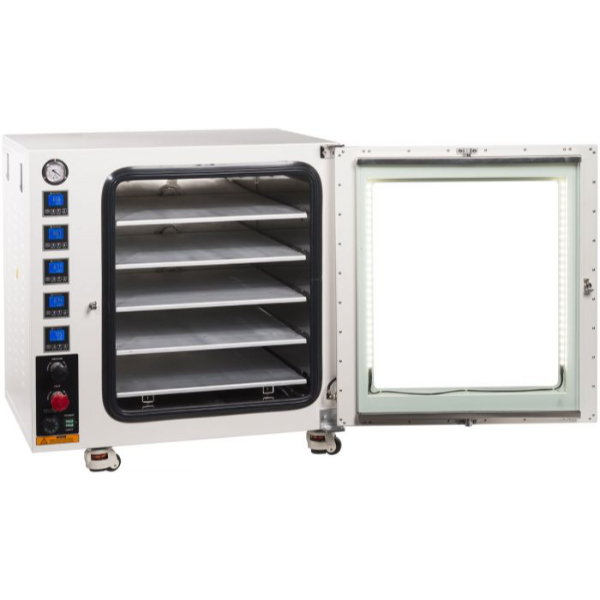

Across, AT75a-UL-220V, 250C UL Certified 7.5 CF Vacuum Oven with 5 Shelves and SST Tubing
AT75a-UL-220V Includes Only:
- Ai UL certified 7.5 cu ft vacuum oven - 1 pc
- KF25 quick clamp and centering ring - 2 sets
- Inlet filter with KF25 connection - 1 pc
- Users manual - 1 pc
Introducing the UL certified 5-shelf 7.5 cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is thesecondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge. With internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Features:
- UL certified
- KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
- All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
- Five aluminum heating shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
- 4th gen low proportional gain temperature controllerskeep your oven temperature accurate.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 3/4" tempered safety glass.
- 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
- Guaranteed US based phone and email assistance within 30 minutes from engineers.
