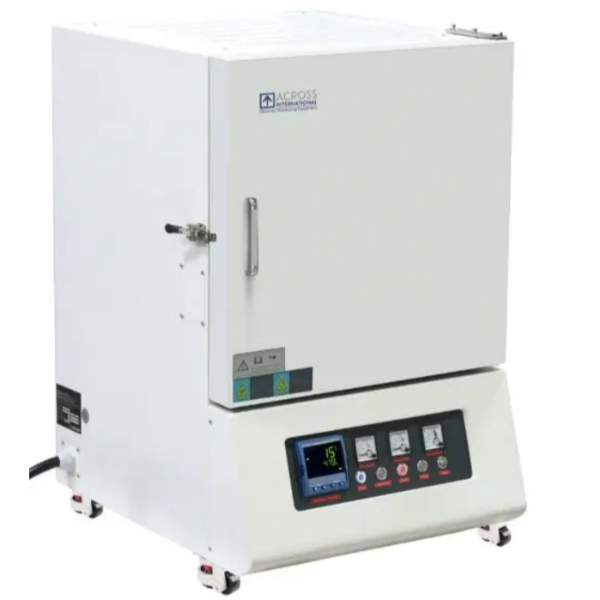

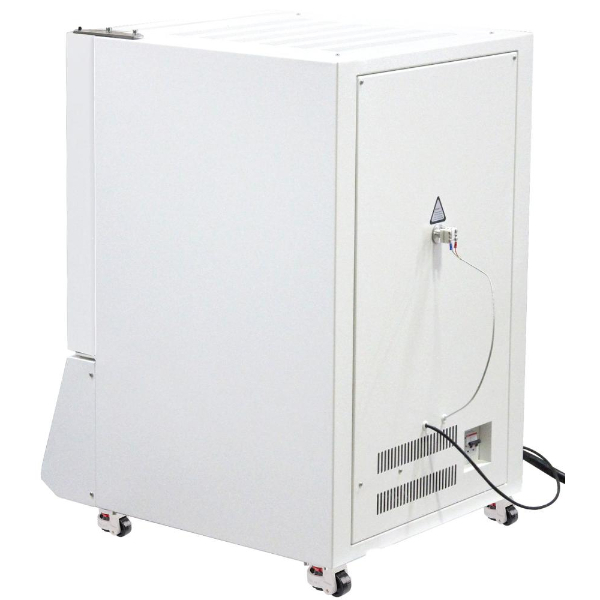

Across, CF1700.6.6.6, 1700°C 40-Segment Muffle Furnace with PC Interface
CF1700.6.6.6 Includes Only:
- CF1700 muffle furnace - 1 pc
- Type B thermocouple - 1 pc
- Stainless steel tongs - 1 pc
- Furnace door block and cushion block - 2 pcs
- Spare heating element - 2 pcs
- Thermal gloves - 1 pair
- Spare fuse - 2 pcs
- USB/RS485 computer interface kit - 1 set
- Operation manual - 1 pc

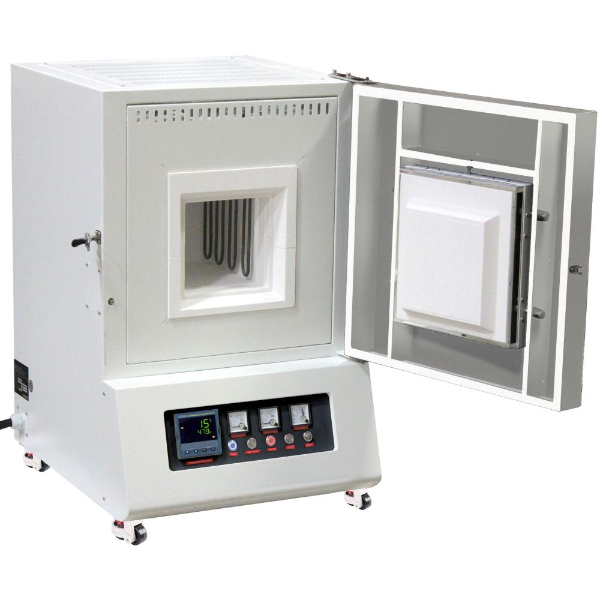

CF1700 series muffle furnaces feature a chamber with Mitsubishi (Japan) high quality grade 1800 alumina fiber insulation and molybdenum silicide (MoSi2) heating elements. A dual-wall steel housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type B thermocouple.
- CE compliant
