Across International E76 – 24" x 24" x 24" 7.6Cu Ft Vacuum Oven with 7 Aluminum Shelves

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

24" x 24" x 24" 7.6Cu Ft Vacuum Oven with 7 Aluminum Shelves

Features:

Re-designed 5-side jacket heating system covers left, right, up, down and backside of the oven, it provides perfect temperature uniformity and fast heating rates.
All stainless steel internal vacuum tubing and compression fittings that holds vacuum 10 times longer and deeper than with rubber tubing. They also provide you the most sanitary working environment, while last for decades without maintenance.
Built-in secondary over-temp dial for added protection.
Exceptional build and finish quality.
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
Adjustable gas back fill capability via vent port
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
Built-in swivel casters with locks for ultra portability.
All ovens shipped from our New Jersey or Nevada location for quick delivery.
Guarantee US based phone and email assistance within 30 minutes (except holidays and weekends) from our engineers.
2-year warranty and lifetime US-based parts and service support.

Includes:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Electrical requirements	220V +/-10% 50/60Hz single phase 20.5A, 4500 watts No plug included, customer will need to install plug base on their power setup
Temperature control	Controller: Low gain microcomputer PID control for heater output Temperature range: Ambient to 250°C Timer range: 0 to 99 hours 59 minutes Temperature accuracy: +/- 1°C Temperature uniformity: +/- 3% of setpoint Warm-up time to 100°F/37.7°C: 45 minutes
Chamber	Dimensions: 23.6 x 23.9 x 23.6" Capacity: 7.6 cubic foot (215 liters) Material: Polished heavy duty type 304 stainless steel Heating method: 5 sided heated jacket
Dimensions (WxDxH)	Unit: 34 x 32 x 45"
Weight	Unit: 620 Lbs
Vacuum	Level: Better than 500 microns/millitorrs Vacuum port: KF25 flange Vent port: 3/8" hose barb
Shelf	Included: 7 aluminum slide-in shelves Shelf size: 23 x 23 inches Total area: 529 x 7 = 3703 inch² Distance between shelves: 3.25 inches
Door gasket material	Silicone
Safety	Built-in safety switch Circuit breaker Overheat protection Power failure auto reset Time up buzzer
Observation window	1/2" tempered safety glass
CE compliant	Yes

Electrical requirements	220V +/-10% 50/60Hz single phase 20.5A, 4500 watts No plug included, customer will need to install plug base on their power setup
Temperature control	Controller: Low gain microcomputer PID control for heater output Temperature range: Ambient to 250°C Timer range: 0 to 99 hours 59 minutes Temperature accuracy: +/- 1°C Temperature uniformity: +/- 3% of setpoint Warm-up time to 100°F/37.7°C: 45 minutes
Chamber	Dimensions: 23.6 x 23.9 x 23.6" Capacity: 7.6 cubic foot (215 liters) Material: Polished heavy duty type 304 stainless steel Heating method: 5 sided heated jacket
Dimensions (WxDxH)	Unit: 34 x 32 x 45"
Weight	Unit: 620 Lbs
Vacuum	Level: Better than 500 microns/millitorrs Vacuum port: KF25 flange Vent port: 3/8" hose barb
Shelf	Included: 7 aluminum slide-in shelves Shelf size: 23 x 23 inches Total area: 529 x 7 = 3703 inch² Distance between shelves: 3.25 inches
Door gasket material	Silicone
Safety	Built-in safety switch Circuit breaker Overheat protection Power failure auto reset Time up buzzer
Observation window	1/2" tempered safety glass
CE compliant	Yes

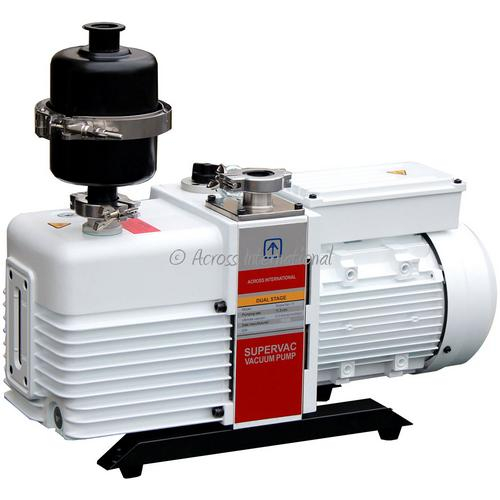

Note: Please read description carefully. Do not base your order on the picture presented.
