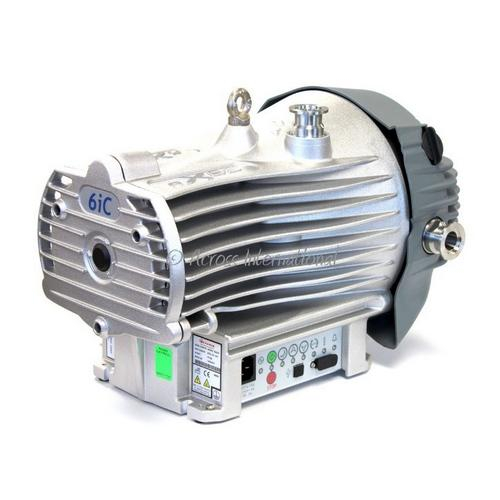

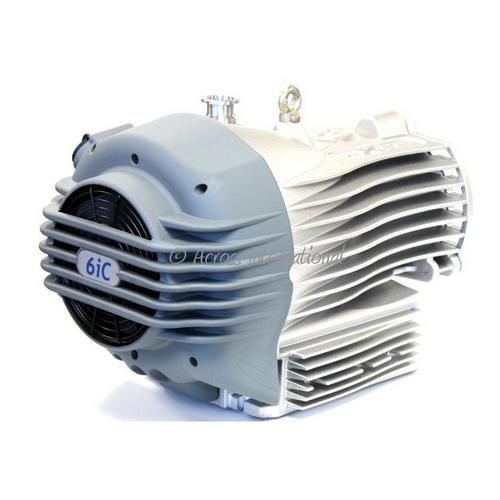

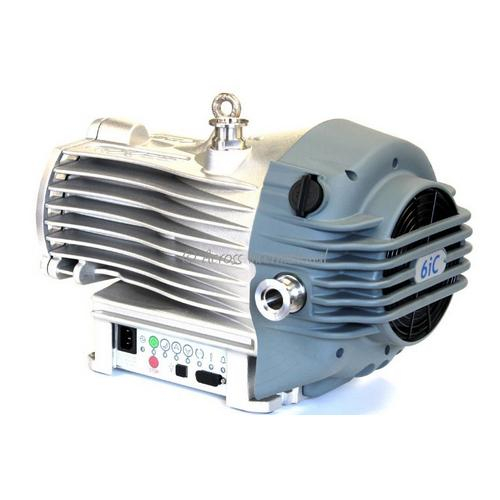

Across, nXDS6iC, Edwards nXDS6iC 4.0 cfm Chemical-Resistant Dry Scroll Pump
Includes:
- Edwards nXDS6iC 4.0 cfm oil free scroll vacuum pump (1 pc).
- KF25 stainless steel vacuum bellow 3 ft (1 pc).
- KF25 wing nut flange quick clamp (2 pcs).
- KF25 flange centering ring (2 pcs).
- 110V stardard 3-prong US power cord (1 pc).
- User's manual in a CD (1 pc).
Features:
- Chemical and corrosion resistant with Chemraz internal valves and stainless steel fittings for extra protection from the pumped media.
- Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination.
- No atmosphere to vacuum shaft seals means bearings are completely isolated, which prevents process attack and means the bearings run cooler and last longer.
- Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time.
- Improved motor and drive efficiencies for reduced power and cost of ownership.
- Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485.
The new nXDS-C pump is a modified version of the nXDS that is suitable for use on vapor handling processes, and may be used for some pumping applications involving corrosive substances. The nXDS-C variants have Chemraz internal valves and stainless steel fittings for extra protection from the pumped media. Together with exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features, the nXDS-C dry scroll pump is the best performing pump in its class.
The nXDS20iC is up to 20 times quieter than other pumps. Its intelligent control functions and up to five year service interval offer low cost of ownership, making it the small dry pump of choice for today’s most advanced technologies.
The Edwards nXDS20i and nXDS20iC pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The nXDS20i is the next generation in completely oil free, dry scroll pumps and replaces the XDS10. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapors including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.
