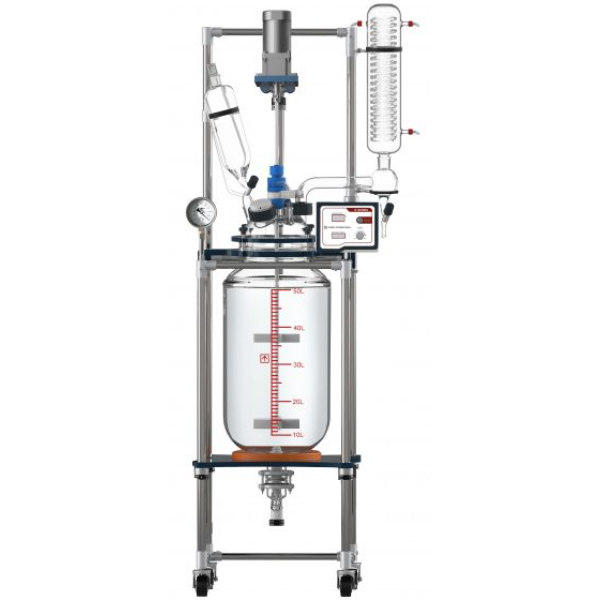

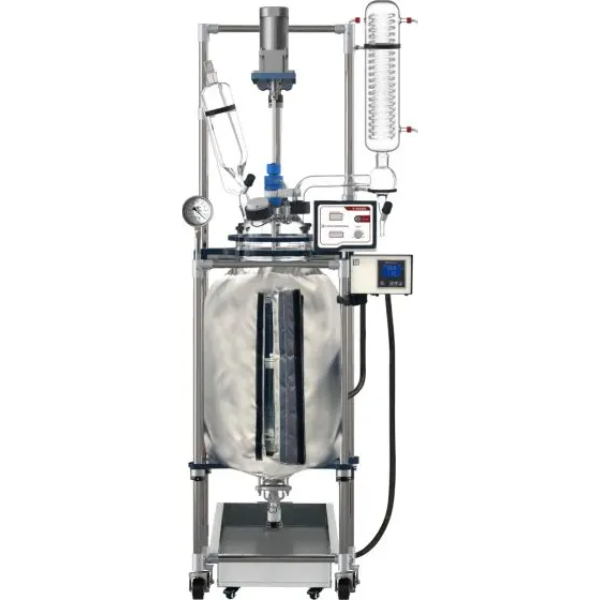

Across International R50h-110V-G Non-Jacketed Glass Reactor, Heating Jacket, 110V

Across, R50h-110V-G, Ai 50L Non-Jacketed Glass Reactor with 200°C Heating Jacket, 110V

R50h-110V-G Includes Only:

• Non-jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled) - 1 set
• ​​​​​​Ai 200°C 50L heating jacket with PID controller - 220V - 1 set
• Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass - 1 pc
• Glass condenser dispenser with drain port and PTFE open/close valve - 1 set
• Glass material feeding funnel, lid, and PTFE open/close valve - 1 set
• 1" glass drain port with PTFE open/close valve - 1 set
• Glass vacuum valve - 1 set
• Stirring motor controller with material temperature display - 1 pc
• Stirring motor and motor support - 1 set
• Mechanical vacuum gauge with two 3/8" hose barb ports - 1 pc
• Temperature probe with PTFE seal - 1 pc
• PTFE stirring blades, stainless steel rod with PTFE liner - 1 pc
• PTFE stirring rod positioner/bearing kit - 1 set
• Condenser dispenser connection kit - 1 set
• Large opening material feeding port kit - 1 set
• Bottom drain port sealing clamp - 1 set
• Rubber-wrapped condenser dispenser support and condenser bracket - 3 pcs
• Allen key and backup inner hex screws - 1 set
• Users manual - 1 pc

Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features:

• No more expensive heating circulators, no more messy heat transfer fluid, adapters and tubing. Introduing the Ai ReactorHeater 200C heating jacket with temperature controller.
• Ai 50L ReactorHeater with temp controller
  • 200C maximum temperature
  • 220V 50/60Hz 3,500 watts
  • Speedy heating
  • Ultra-thick insulation for minimum heat loss and very low outer jacket surface temperature
  • Built-in open/close viewing window
  • Easy installation, plug and play
  • Oven-temp protection, over-current protection
  • ETL tested to UL and CSA standards
  • Designed and made in the USA
• Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
• All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
• Adjustable stirring rate provides great torque or high speed.
• Patented PTFE stirring rod bearing for reliable and quiet operation.
• Wide range of temperature operations, from -110F to 400F.
• Large condenser cooling surface for exceptional condensation performance.
• Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
• Easily visual operation with digital speed and temperature displays.
• Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
