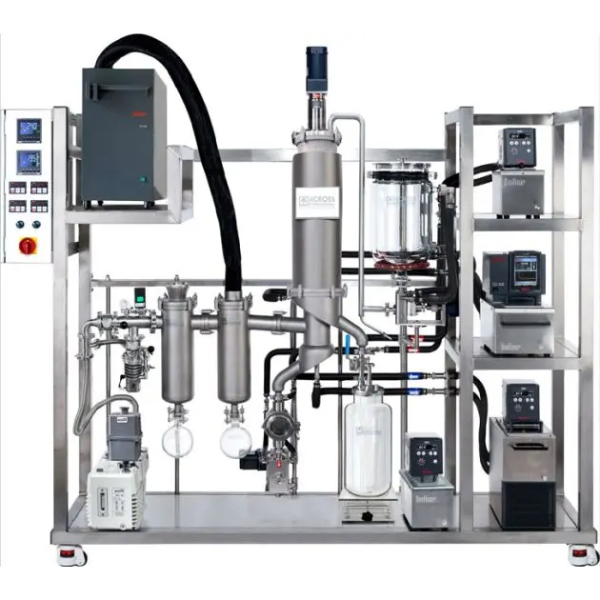

Across International TS-6-R 6" Stainless Turnkey Thin Film Distillation, Roller

Across, TG-6, Ai 6" Glass Turnkey Thin Film Distillation System ETL

TG-6 Includes Only:

• Chiller/Heater: HUBER KISS 205B 200C 5L 14L/min, 2kW heater, 230V x 2, HUBER CC-308B Pilot ONE 300C 8.5L 25L/min, 3kW heater, 230V x 1, HUBER KISS K6 -25C to 200C 4.5L 14L/min, 2kW heater, 230V x 1 - 4 pcs
• PolyScience IP-80 or Huber TC100 cooler - 1 pc
• Welch CRVPro 30 22 CFM 0.3 micron, 230V with 1417F exhaust filter - 1 set
• Agilent AX-65 air-cooled diffusion pump with 250W heater, 230V 60Hz - 1 pc
• Agilent diffusion pump oil (do NOT fill more than 30mL at a time) - 40 ml
• Agilent PCG-750 Pirani diaphragm high vacuum gauge with power - 1 pc
• Stainless steel manifold with two on/off valves for vacuum pump and diffusion pump - 1 pc
• TS-6 SST Thin Film evaporator body with 2 cold traps and 3 gear pumps - 1 set
• DURATHERM S -66C to 366C thermo transfer fluid 5-gallon (18.9L) - 2 pcs
• Antifreeze 1-gallon (3.78L) - 3 pcs
• 1L cold trap collection flask, glass - 4 pcs
• Viton sealing gasket - 2 sets
• KF25 bellow, clamps, adapter, tubing - 1 set
• User's manual - 1 pc

Continuous distillation, a form of distillation, is an ongoing separation in which a mixture is continuously (without interruption) fed into the process and separated fractions are removed continuously as output streams. Distillation is the separation or partial separation of a liquid feed mixture into components or fractions by selective boiling (or evaporation) and condensation. The process produces at least two output fractions. These fractions include at least one volatile distillate fraction, which has boiled and been separately captured as a vapor condensed to a liquid, and practically always a bottoms (or residuum) fraction, which is the least volatile residue that has not been separately captured as a condensed vapor.

Features:

• Jacketed main evaporator body increases efficiency and protects user from high surface temperature
• High precision PTFE rollers (or blades) and inner stainless steel surface allow a complete and uniform thin film on the heated surface and leave minimum process residue
• Easy accessed low-placed jacketed material feeding flask
• Improved simple design jacketed feeding tube for easy maintenance
• Pre-installed cooling/heating tubing with fluid direction labels and M16 ports
• Driving motor with magnetic coupling sealing ensures high vacuum level
• Constructed with stainless steel and Viton gaskets for ultimate corrosion resistance
• Auto delay safety circuit for diffusion pump cooling
• Heavy-duty stainless steel frame with swivel casters and leveling feet for mobility and stability
• Redesigned drain port with sight glass for easy cleaning and maintenance.
• Ai on-site installation within contiguous US included
• Liquid Nitrogen (in cold trap) is highly recommended for system to get to optimal vacuum levels
• ETL tested to UL and CSA standards
