Across International XDS46iC-220V 35cfm Chemical-Resistant Scroll Pump, 220V

Across, XDS46iC-220V, Edwards XDS35iC 25cfm Chemical-Resistant Scroll Pump with Silencer

XDS46iC-220V Includes Only:

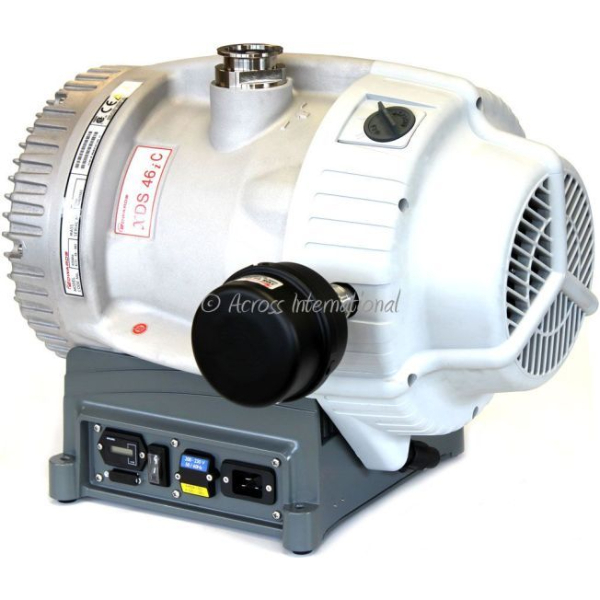

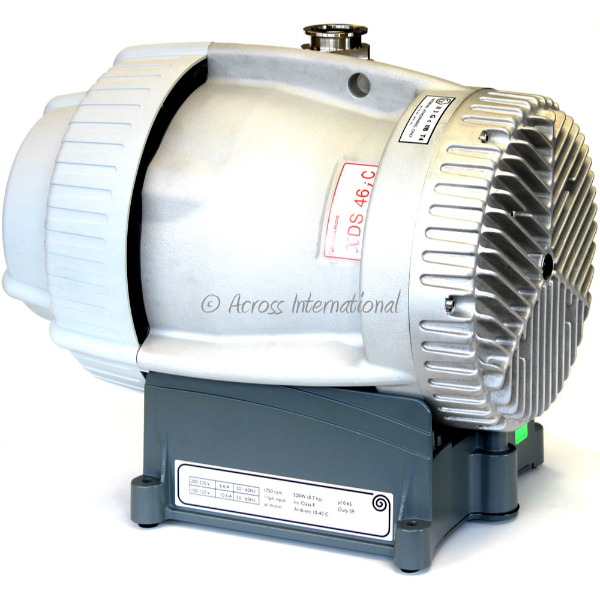

• Edwards XDS46iC 35 cfm oil free scroll vacuum pump (KF40 inlet & KF25 outlet) - 1 pc
• KF40 Quick Clamp - 2 pc
• KF40 Flange Centering Ring - 2 pc
• KF25 Quick Clamp - 1 pc
• KF25 Flange Centering Ring - 1 pc
• KF40 flexible stainless steel bellow - 3.3 ft - 1 pc
• Stainless steel KF25 to KF40 adapter - 1 pc
• Edwards silencer for XDS35iC or XDS46iC (KF25 connection) -1 set
• Power cord - 1 pc
• User's manual in a CD - 1 pc

XDS scroll pumps have become industry standard when dry pumping is essential, proving to be a robust and clean vacuum pump solution in a range of applications and processes.The XDS46i shares many of the same features of the XDS35i but with a peak speed of 40 m3h-1. The pump has been optimised for maximum pumping speed at inlet pressures between 1 mbar and 10 mbar, making it ideally suited for LCMS and ICPMS applications requiring higher pumping speeds.The C variant has been modified so that it is more suitable for use on vapour handling processes and may be used in some applications using corrosive substances. The C version is fitted with Chemraz internal valve pads and stainless steel exhaust port.

Applications:

• Automotive; brake line and air conditioning evacuation
• Backing turbomolecular pumps
• Chemical applications including gel dryers and solvent recovery
• Coating systems
• High energy physics
• Mass spectrometry

Features:

• Lubricant-free within the vacuum envelope and hermetically sealed means a totally clean and dry vacuum to prevent cross contamination.
• No atmosphere to vacuum shaft seals means bearings are completely isolated, this prevents process attack and enable the bearings to run cooler and last longer.
• No oil to change eliminating cost of contaminated oil disposal.
• Simple single sided scroll design allows maintenance to be done in minutes for low cost of ownership and maximum uptime.
• Inverter drive for consistent pumping speeds worldwide.
