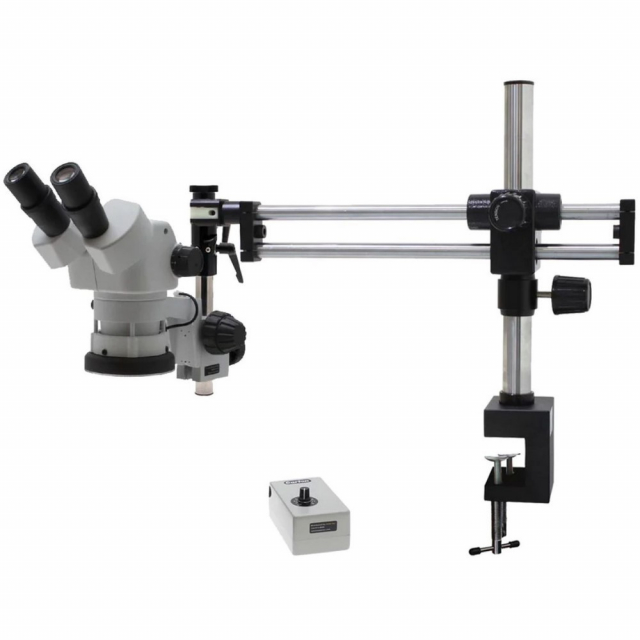

Aven, 26800B-703, SPZV-50 Stereo Zoom Binocular Microscope 6.7x - 50x on Double Arm Boom Stand with Table Clamp
26800B-703 Includes Only:
- 1 x SPZ Binocular Stereo Zoom Microscope Body
- 2 x 10x Eyepieces
- 2 x Rubber Eyeguards
- 1 x Dust Cover
- 1 x Instruction Manual
Features:
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance 108mm (4.25") -the best in class 17mm (0.67") high eye point wide field
- 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
- Compact and convenient
- Microscope can be easily positioned
Applications:
- Precision assembly applications
- Quality control
- Production applications
- Electrical inspection
- Medical device inspection
- Aerospace
- Educational applications
- Research and Development
This system features Aven's SPZ-50 Stereo Zoom Microscope with 10x eyepieces (6.7x - 50x magnification), ideal for examining objects of any size. Featuring Aven's Double Arm Boom Stand for smooth microscope positioning.

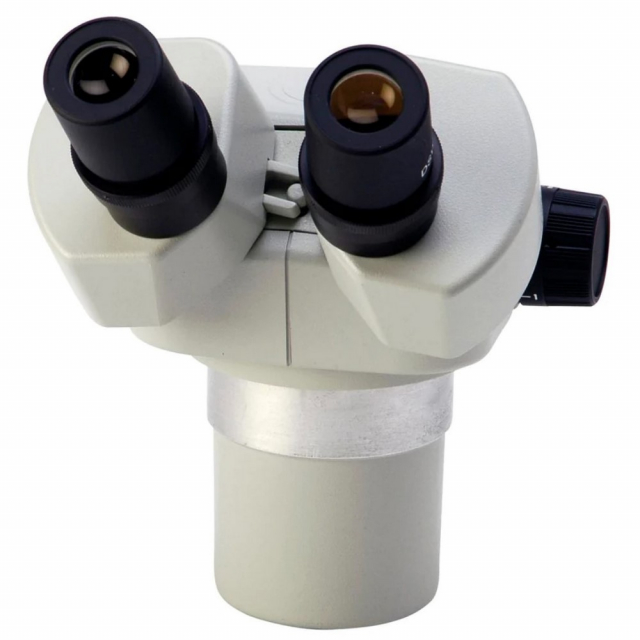

High Precision Optics
SPZV-50 true trinocular stereo zoom microscopes offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance which makes it an ideal choice for inspection and capturing and viewing images on an monitor. High precision optics ensures excellent contrast and high definition 3D images from edge to edge.
- View images through the eyepiece or a monitor simultaneously.
- Click stop zoom adjustment for accurate measuring
- Easy adjust C-mount camera adapter for fine focusing
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance 108mm (4.25") - the best in class
- 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes

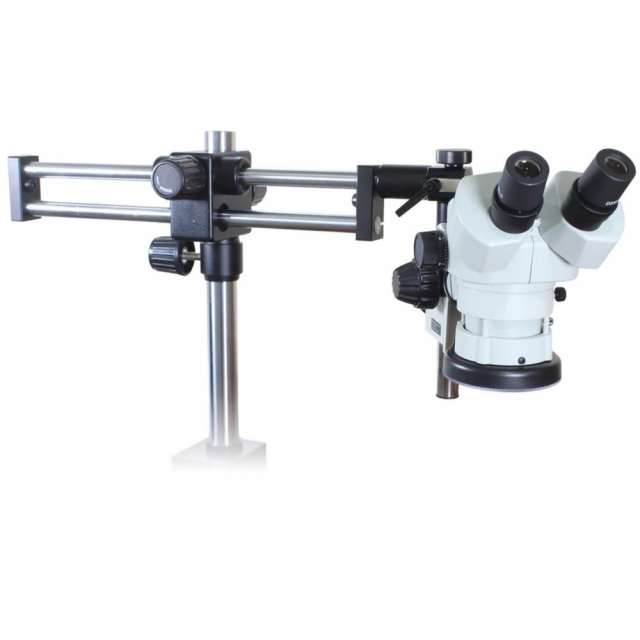

Compact and Convenient
The double arm boom stand gives operators the ability to smoothly scan and position the microscope to the required position. Includes a built-in table clamp with dual locks for added stability. The arm can be raised/lowered and rotated to the ideal position.
Vertical and horizontal adjustment
- Allows positioning of microscopes over large area
- Heavy duty all metal construction for durability.
- Posts are highly polished for smooth operation
- Table clamp securely attaches to your work surface and saves table space.

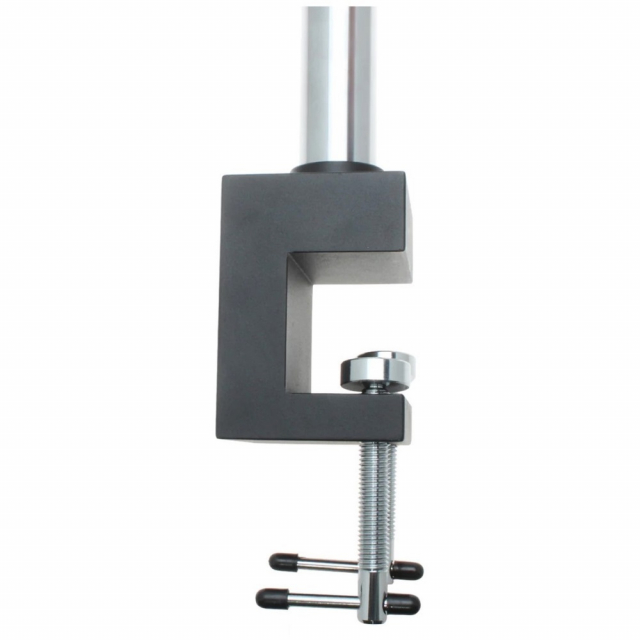

Heavy-Duty Table Clamp
The built in table clamp secures to the side of work bench, featuring dual locks for added stability.
LED Ring Light Focus Mount
This focus mount features an LED ring light with 60 adjustable LEDs. The course adjustment knobs on the side of the focus mount can be utilized to adjust the focal distance of the microscope.
For more information, please see
Manual
