Aven DSZV-44 Trinocular Stereo Zoom Microscope

Magnification Range: 10x to 44x, Body Type: Trinocular
  • Brand Aven
  • Part # DSZV-44
  • Condition
    Brand New
  • Manufacturer List Price
    $2,204.80
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Magnification Range:
Magnification Range: 10x to 44x
Body Type:
Body Type: Trinocular

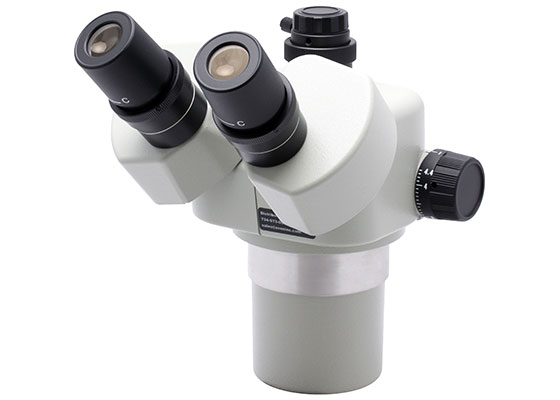

DSZV-44 Trinocular Stereo Zoom Microscope

DSZV dual view trinocular stereo zoom microscopes offers superior quality optics with the ability to view through both eyepieces and trinocular port simultaneously. This means you can view 3D images through your eyepieces and an external monitor connected to a camera on the trinocular port at the same time. Magnification range fro 2.5x to 140.8x with optional auxiliary lenses and eyepieces. A wide variety of stands, cameras and illumination is available to provide you with a microscope system to meet your individual requirements.

Includes

  • 1ea DSZV-44 Trinocular Stereo Zoom Microscope
  • 2 ea. 10x Eyepieces
  • 2 ea. Rubber Eyeguards
  • 1 ea. Dust Cover
  • 1 ea. Instruction Manual

Features

  • Zoom ratio: 4.4:1
  • Magnification range: 10x to 44x
  • Field of view 23mm to 5.2mm (0.90" to 0.20")
  • Working distance: 90mm
  • Wide Field 10x Eyepieces (Field Number 23)
  • Magnification range of 2.5x to 140.8x with optional lenses
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Body TypeTrinocular, 360° rotatable, 45° inclined eyepiece tube & C-mount camera port
EyepiecesTwo 10x(FN23)eyepieces supplied with microscope body. Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range
Auxiliary lens0.5x, 0.75x and 1.6x auxiliary lenses available to extended magnification range of microscope
Working Distance90mm (3.54 inch) without auxiliary lens
150mm (5.91 inch) with 0.5x auxiliary lens
105mm (4.13 inch) with 0.75x auxiliary lens
45mm (1.77 inch) with 1.6x auxiliary lens
Zoom Ratio4.4:1
Diopter AdjustmentOn both eye tubes: +5.6D-.72D
Interpupillary DistanceAdjustable from 52 to 75mm (2.05 to 2.95 inch)
Optical SystemGreenough
Weight5lb
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Body TypeTrinocular, 360° rotatable, 45° inclined eyepiece tube & C-mount camera port
EyepiecesTwo 10x(FN23)eyepieces supplied with microscope body. Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range
Auxiliary lens0.5x, 0.75x and 1.6x auxiliary lenses available to extended magnification range of microscope
Working Distance90mm (3.54 inch) without auxiliary lens
150mm (5.91 inch) with 0.5x auxiliary lens
105mm (4.13 inch) with 0.75x auxiliary lens
45mm (1.77 inch) with 1.6x auxiliary lens
Zoom Ratio4.4:1
Diopter AdjustmentOn both eye tubes: +5.6D-.72D
Interpupillary DistanceAdjustable from 52 to 75mm (2.05 to 2.95 inch)
Optical SystemGreenough
Weight5lb
Note

Note: Please read description carefully. Do not base your order on the picture presented.
