Aven SPZ-50-534-223 SPZ-50 Stereo Zoom Binocular Microscope

  • Brand Aven
  • Part # SPZ-50-534-223
  • Model # SPZ-50
  • Condition
    Brand New
  • Manufacturer List Price
    $3,027.82
Availability
Typically In Stock
Check Availability
Quantity
Share:

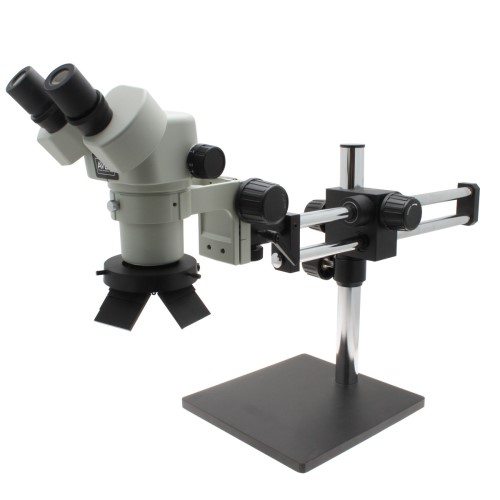

Aven, SPZ-50-534-223, Stereo Zoom Binocular Microscope SPZ-50 [6.75x-50x] On Double Arm Boom Stand with OLED Ring Light

SPZ-50-534-223 Includes Only:

  • SPZ-50 Stereo Zoom Microscope

  • OLED Ring Light

  • Double Arm Boom Stand w/Heavy Metal Base

Features:

  • Convenient 2-in-one camera and monitor system
  • Simple cable management
  • Crisp HD image
  • Built in SD card reader for instant image/video capture
  • USB output for connection to your PC
  • Wireless mouse for access to settings menus
  • Grid overlays
  • Compare mode, freeze mode and mirror mode
  • Alleviate the eye strain and neck fatigue associated with frequent microscope use
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Body TypeBinocular, 360° rotatable, 45° inclined eyepiece tube & C-mount camera port
EyepiecesTwo 10x(FN23)eyepieces supplied with microscope body.
Working Distance108mm without auxiliary lens 240mm with 0.5x auxiliary lens 132mm with 0.75x auxiliary lens 50mm with 1.6x auxiliary lens 41mm with 2x auxiliary lens
Zoom Ratio7.46:1
Diopter AdjustmentOn both eye tubes: +5.6D-.72D
Interpupillary DistanceAdjustable from 52 to 75mm
Optical SystemGreenough
Package Contents1ea SPZV True Trinocular Stereo Zoom Microscope Body with Photo tube 2 ea. 10x Eyepieces 2 ea. Rubber Eyeguards 1 ea. Dust Cover 1 ea. Instruction Manual
Weight5lb
Weight1.2 lbs
Dimensions9 x 11.5 x 1.5 in
Illuminance at 100mmMIN 800lx ~ MAX 2,500lx (5,000lx w/tilted panels)
Color Temperature5400K
Aperture41mm - 62mm
27mm - 40mm (with extenders for fixing screws)
Power supplyAC Adapter (Input AC 100 - 240V, 50/60Hz)
Rated VoltageDC15V
Power Consumption5.5W(MAX)
Life TimeApprox. 10,000 hours at middle intensity
Package ContentsOLED Ring Light, Power Supply, Ring Light Adapter.
Double Arm Boom Stand w/Heavy Metal Base
Base Size285mm x 260mm x 18mm
Base Weight17.35 kg (38lbs)
Base Size285mm x 260mm x 18mm
Vertical Post Length380mm
Vertical Post Diameter37.2mm
Horizontal Arm Length384mm
Horizontal Arm Diameter20mm
Focus Mount Hole Diameter15.875mm (5/8";)
Mounts AcceptedSCW-PA focus mount with tiltable arbor 26800B-521 or E-Arm
Accepted BodiesSSZ, SPZ, DSZ and NSW series
Package ContentsOne boom stand with metal base Users manual
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Body TypeBinocular, 360° rotatable, 45° inclined eyepiece tube & C-mount camera port
EyepiecesTwo 10x(FN23)eyepieces supplied with microscope body.
Working Distance108mm without auxiliary lens 240mm with 0.5x auxiliary lens 132mm with 0.75x auxiliary lens 50mm with 1.6x auxiliary lens 41mm with 2x auxiliary lens
Zoom Ratio7.46:1
Diopter AdjustmentOn both eye tubes: +5.6D-.72D
Interpupillary DistanceAdjustable from 52 to 75mm
Optical SystemGreenough
Package Contents1ea SPZV True Trinocular Stereo Zoom Microscope Body with Photo tube 2 ea. 10x Eyepieces 2 ea. Rubber Eyeguards 1 ea. Dust Cover 1 ea. Instruction Manual
Weight5lb
Weight1.2 lbs
Dimensions9 x 11.5 x 1.5 in
Illuminance at 100mmMIN 800lx ~ MAX 2,500lx (5,000lx w/tilted panels)
Color Temperature5400K
Aperture41mm - 62mm
27mm - 40mm (with extenders for fixing screws)
Power supplyAC Adapter (Input AC 100 - 240V, 50/60Hz)
Rated VoltageDC15V
Power Consumption5.5W(MAX)
Life TimeApprox. 10,000 hours at middle intensity
Package ContentsOLED Ring Light, Power Supply, Ring Light Adapter.
Double Arm Boom Stand w/Heavy Metal Base
Base Size285mm x 260mm x 18mm
Base Weight17.35 kg (38lbs)
Base Size285mm x 260mm x 18mm
Vertical Post Length380mm
Vertical Post Diameter37.2mm
Horizontal Arm Length384mm
Horizontal Arm Diameter20mm
Focus Mount Hole Diameter15.875mm (5/8";)
Mounts AcceptedSCW-PA focus mount with tiltable arbor 26800B-521 or E-Arm
Accepted BodiesSSZ, SPZ, DSZ and NSW series
Package ContentsOne boom stand with metal base Users manual
Note

Note: Please read description carefully. Do not base your order on the picture presented.
