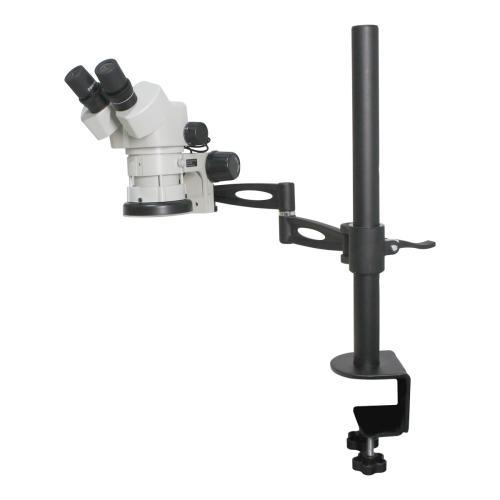

Aven, SPZ50-209-553, Stereo Zoom Binocular Microscope SPZ-50 [6.7x – 50x] On Compact Articulating Arm Stand With LED Ring Light
SPZ50-209-553 Includes Only:
- 1 ea. SPZ Binocular Stereo Zoom
- Microscope Body
- 2 ea. 10x Eyepieces
- 2 ea. Rubber Eyeguards
- 1 ea. Dust Cover
- 1 ea. Instruction Manual
Features with all optional accessories:
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance 108mm (4.25") -the best in class 17mm (0.67") high eye point wide field
- 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
- Compact and convenient
- Microscope can be easily positioned
- 16.3 articulating arm with two joints
- 6.7x - 50x optical magnification
- Expandable magnification range with optional eyepieces and lenses
- Compact articulating arm stand provides easy positioning options and saves work space
- LED ring light provides ultra-bright illumination
SPZV-50 true trinocular stereo zoom microscopes offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance which makes it an ideal choice for inspection and capturing and viewing images on an monitor. High precision optics ensures excellent contrast and high definition 3D images from edge to edge.
Compact And Convenient
The articulating arm stand features a 415mm (16.33in) articulating arm with two articulating joints, attached to a 450mm (17.7in) post.
Articulating Arm
The 16.3 inch articulating arm can be secured to any point along the 17.7 inch post. The two articulating joins can be rotated to the ideal position, and can be used to move the microscope out of the way when not in use.
Heavy-Duty Table Clamp
The built in table clamp secures to the side of work bench, featuring dual locks for added stability.
LED Ring Light Focus Mount
The included computational imaging software provides users with more functions such as:This focus mount features an LED ring light with 60 adjustable LEDs. The course adjustment knobs on the side of the focus mount can be utilized to adjust the focal distance of the microscope.
Applications:
- Precision assembly applications
- Quality control
- Production applications
- Electrical inspection
- Medical device inspection
- Aerospace
- Educational applications
- Research and Development
