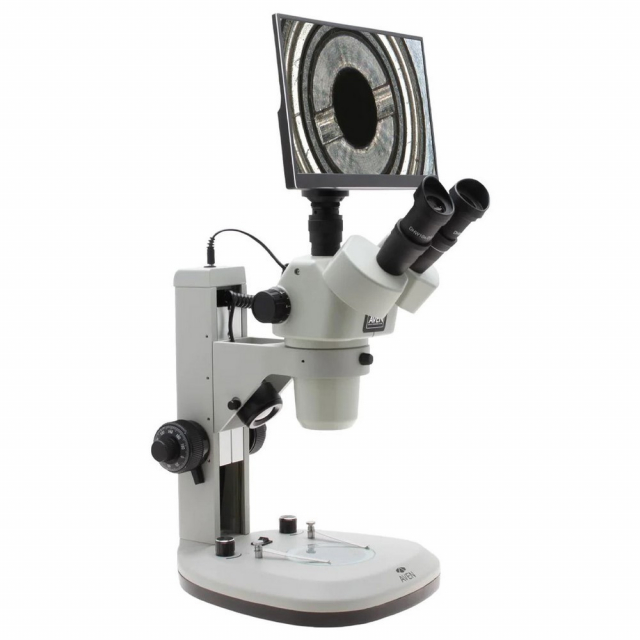

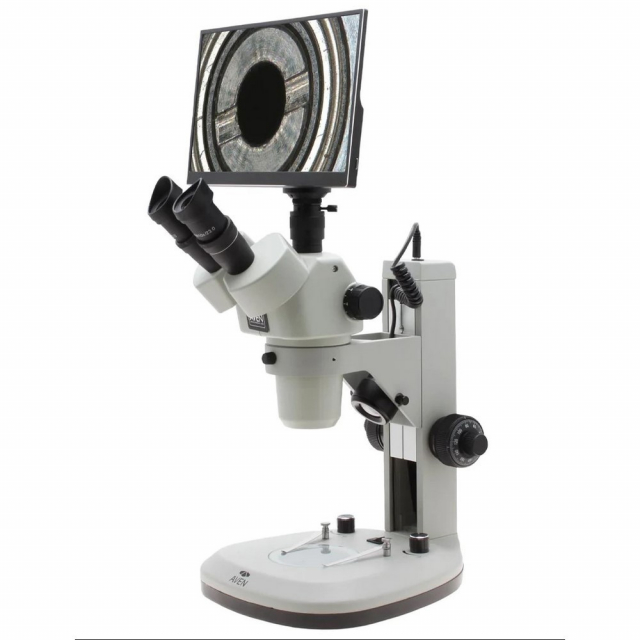

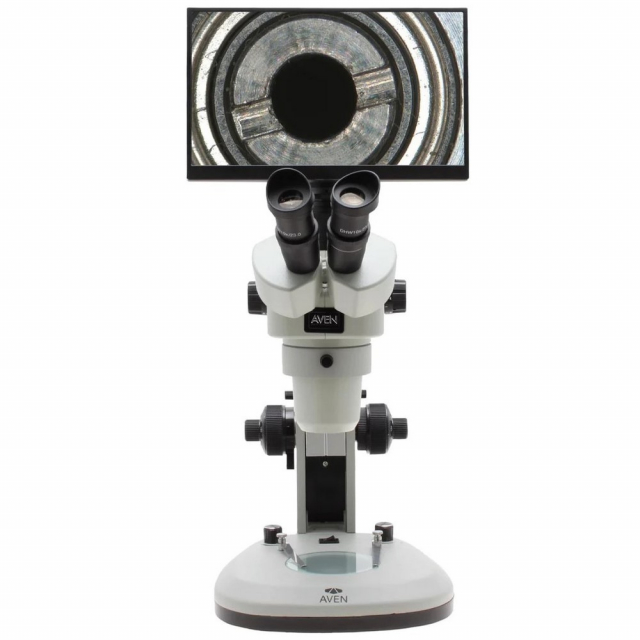

Aven, SPZV50-506-260, Trinocular Stereo Zoom Microscope 6.7x - 50x on Track Stand with Top and Bottom LEDs
SPZV50-506-260 Includes Only:
- SPZV-50 Microscope
- Stand PLED
- 26800B-512 Mighty Cam Eidos 2M
- Camera/Monitor 26100-260
Features:
- Convenient 2-in-one camera and monitor system
- Simple cable management
- Crisp HD image
- Built in USB port for instant image/video capture
- USB output for connection to your PC
- Wireless mouse for access to settings menus
- Grid overlays
- Compare mode, freeze mode and mirror mode
- Alleviate the eye strain and neck fatigue associated with frequent microscope use
- View images through the eyepiece or a monitor simultaneously.
- Click stop zoom adjustment for accurate measuring
- Easy adjust C-mount camera adapter for fine focusing
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance 108mm (4.25") - the best in class
- 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
- Light weight compact stand
- Ideal for examining small parts
- Comes with rack & pinion focus mount with course and fine adjustment knobs
- Built in 60 LED ring light with dimmer control
- Low power consumption
Applications:
- Precision assembly applications
- Quality control
- Production applications
- Electrical inspection
- Medical device inspection
- Aerospace
- Educational applications
- Research and Development
Designed For Ergonomic Use
OSHA has found that working with microscopes for long hours is straining both to the visual system and the musculoskeletal system. Operators are forced into an unusual exacting position with little possibility to move the head or body. They are often forced to assume an awkward work posture such as the head bent over the eye tubes, upper part of the body bent forward, the hand reach high up for a focusing control or with the wrist bent in an unnatural position. The Eidos microscope system is designed to overcome these issues. The 11.6" HD monitor with the built in 2 mega pixel HD camera is mounted at eye level allowing operators to sit comfortably in a good working position, making the inspection process less tiresome. The microscope can still be used when required providing the operator the best of both worlds.
SPZV-50 Stereo Zoom Microscope
SPZV-50 true trinocular stereo zoom microscopes offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance which makes it an ideal choice for inspection and capturing and viewing images on an monitor. High precision optics ensures excellent contrast and high definition 3D images from edge to edge. Magnification range from 3.35x to 200x with optional auxiliary lenses and eyepieces. A wide variety of stands, cameras and illumination is available to provide you with a microscope system to meet your individual requirements.
Featuring a universal C-Mount, the Eidos is compatible with industry-standard trinocular microscopes and video lenses. Contact us for help designing your own custom digital microscope.
Digital Inspection Made Easy
Eliminates Body Fatigue and Eye Strain
Aven's Mighty Cam Eidos 5 mega-pixel camera with a built in 11.6-inch screen can be attached to a trinocular microscope or video lens with a C or CS mount. The camera features a 5M Sony sensor that provides stunning high-quality images for you to view on the built in 11.6" HD monitor. This eliminates the eye strain and body fatigue associated with frequent optical microscope use.
Capture Stunning Image/Video Files
No Computer Required
Save high-resolution image and video files directly to USB storage, with no need for a PC for image processing.
Track Stand with Fine Focus Adjustment
Overhead and Backlight LEDs
The track stand offers versatility for a wide variety of applications. The focus mount can be adjusted vertically in precise increments via the fine focus knobs, or in larger adjustments with the coarse focus knobs. The microscope stays in the desired position with no need to lock it in.

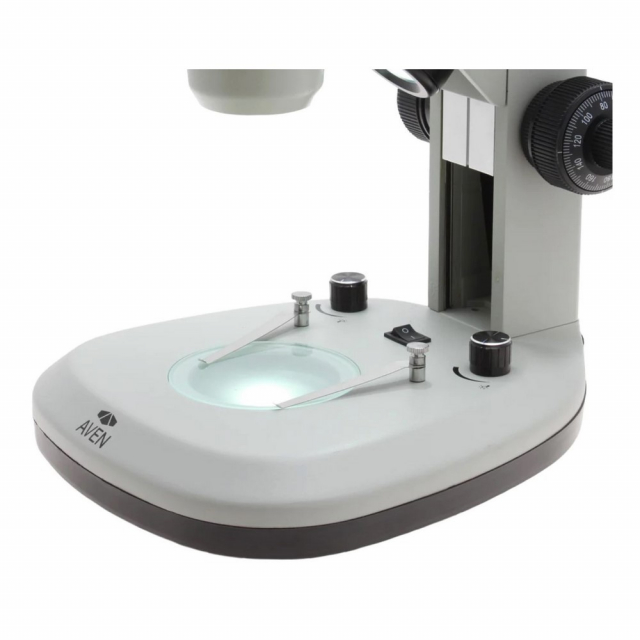

The overhead LED lamp can be tilted up and down to the desired position, and the back light LED located in the base of the stand is ideal for illuminating transparent objects such as slides. Each LED lamp has a dedicated dimmer control. A dual-sided cover is also included for applications where the LED back light is not required.

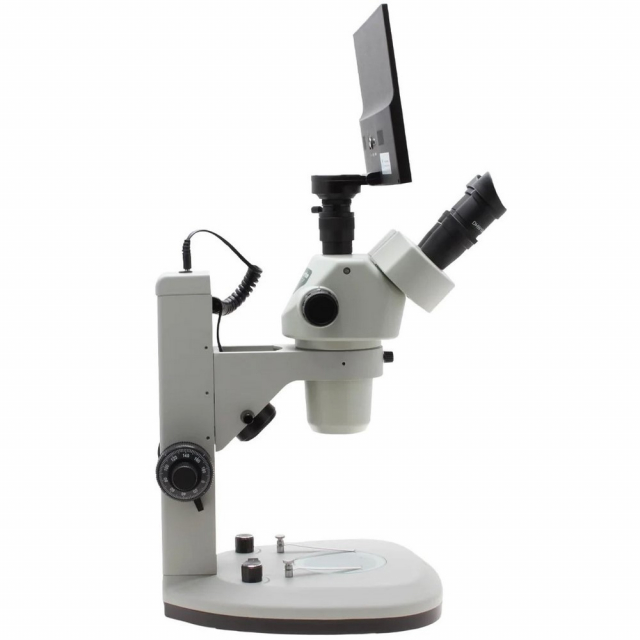

Monitor Tilt
The monitor is can be tilted to the ideal angle for optimal viewing.
HDMI Output
The Eidos features an HDMI output designed to connect to an external monitor. This allows operators to view live images on the built-in monitor, as well as an external monitor.
Built-in measurement
The included computational imaging software provides users with more functions such as:
- Calibration editor
- Radius measurement
- 2 point circle
- 3 point circle
- Crosshair
- Line measurement tool
- Center distance
- Concentric circle tool
- Annotation tool
- Screen shot tool
