Dino-Lite Digital Microscope AF4515FVT Edge Series Digital Microscope, 20x-220x, 8 UV

Backlight Type: 8 UV LEDs 400nm
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Backlight Type:
Backlight Type: 8 UV LEDs 400nm

Dino-Lite, AF4515FVT, Edge Series Digital Microscope, USB, 20x-220x, 8 UV LEDs 400nm, with FLC, AMR, Scroll Lock

AF4515-FVT Includes Only:

  • Digital microscope
  • Software and drivers CD
  • Edge Calibration Target
  • Carry Pouch

Features:

  • Automatic Magnification Reading
  • Wireless Ready
  • Barcode reader
  • Compatible with Windows 7, 8, 10, 11 and Mac OS
  • Annotate and Measure

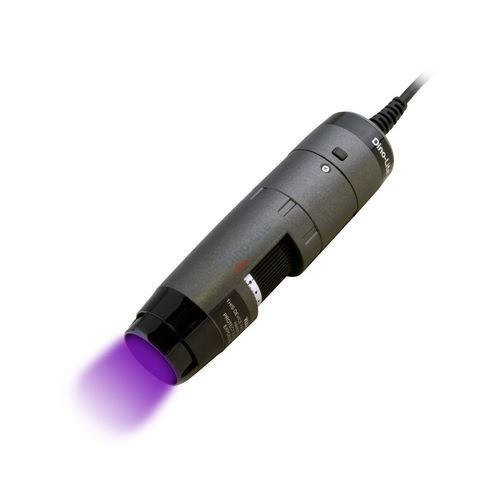

The AF4515-FVT Dino-Lite Edge handheld digital microscope offers near UV-fluorescent LED's with a spectrum of 400nm and comes with a high quality 1.3 megapixel sensor which allows users to examine object with the greatest of details. Flexible Lighting Control provides lighting adjustment options including intensity settings from 1-6, as well as the ability to turn on or off LED's by quadrant. The AF4515-FVT provides various magnifications depending on distance, with a maximum magnification over 220x under UV-fluorescent light.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
MeasurementYes
Automatic Magnification ReadingYes
Extended Depth of FieldNo
Flexible LED ControlLED Brightness Control Only
Enhanced Dynamic RangeNo
Wireless ReadyYes
Magnification LockYes
Body MaterialABS Plastic
Microtouch SensorYes
LEDsUltraviolet (8)
PolarizationNo
LED Spectrum400nm
Magnification Range10x - 220x
Working DistanceStandard
Lens TypeGlass
Megapixels1.3 MP
Image Save Formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video Save Formats (Windows)WMV, FLV, SWF
Operating SystemWindows XP, Vista, 7, 8, 10, 11, Mac OS 10.5+
Connection TypeUSB 2.0
Included SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging StandardsUVC
Sensor TypeCMOS
Resolution1280 x 1024 pixels
Frame Rate (max)30 FPS
Dimensions11.4cm (H) x 3.3cm (D) (4.4" x 1.29")
Weight111g (3.9 oz)
Cable Length182cm (71.65 in)
Regulatory ApprovalCE, FCC
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
MeasurementYes
Automatic Magnification ReadingYes
Extended Depth of FieldNo
Flexible LED ControlLED Brightness Control Only
Enhanced Dynamic RangeNo
Wireless ReadyYes
Magnification LockYes
Body MaterialABS Plastic
Microtouch SensorYes
LEDsUltraviolet (8)
PolarizationNo
LED Spectrum400nm
Magnification Range10x - 220x
Working DistanceStandard
Lens TypeGlass
Megapixels1.3 MP
Image Save Formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video Save Formats (Windows)WMV, FLV, SWF
Operating SystemWindows XP, Vista, 7, 8, 10, 11, Mac OS 10.5+
Connection TypeUSB 2.0
Included SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging StandardsUVC
Sensor TypeCMOS
Resolution1280 x 1024 pixels
Frame Rate (max)30 FPS
Dimensions11.4cm (H) x 3.3cm (D) (4.4" x 1.29")
Weight111g (3.9 oz)
Cable Length182cm (71.65 in)
Regulatory ApprovalCE, FCC
Optional Accessories

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
