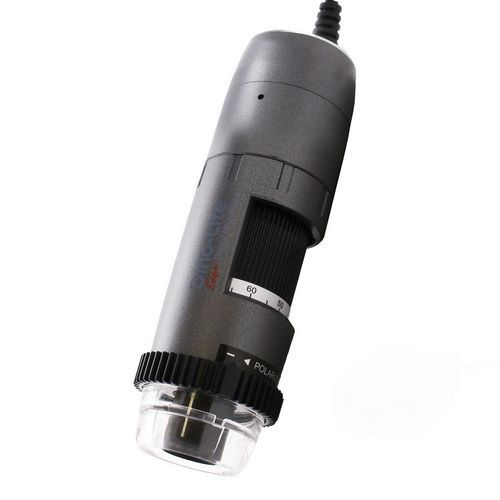

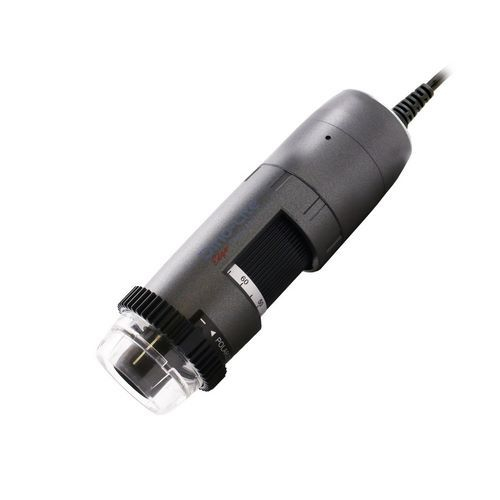

Dino-Lite Digital Microscope AM4115ZTF Edge Series Digital Microscope, 1x-70x, Polarizer

Type: with Variable Polarizing
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Type:
Type: with Variable Polarizing

Dino-Lite, AM4115ZTF, Edge Series Digital Microscope, USB, 1.3MP, 1x-70x, Variable Polarizer

AM4115ZTF Includes Only:

  • Digital microscope
  • Software CD

Features:

  • Barcode reader
  • Compatible with Windows 7, 8, 10, 11 and Mac OS
  • Annotate and Measure
  • Built-in adjustable polarizer

The Dino-Lite AM4115ZTF Edge Series"Far" working distance polarizing model is designed to provide extra-long working distance with a magnification range of 1x - 70x. At 10x with 19" working distance and 70" at 4.25". The 1.3MP AM4115TZF impressively offers minimum 115mm viewing distance with maximum 70x magnification. In comparison to the Edge Series long working distance models, the AM4115TZF extends 80mm working distance at 70x magnification, making it an ideal option for fabrication or observation requiring long distance. The built on polarizer helps reduce or eliminate glare on reflective surfaces providing a clearer view and high quality image.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
MeasurementYes
Automatic Magnification ReadingNo
Extended Depth of FieldNo
Enhanced Dynamic RangeNo
Magnification LockYes
Body MaterialABS Plastic
Microtouch SensorYes
LEDsWhite (8)
PolarizationYes
Magnification Range10x - 70x
Working DistanceFar
Lens TypeGlass
Megapixels1.3 MP
Image Save Formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS)JPEG, PNG
Operating SystemWindows XP, Vista, 7, 8, 10, 11, Mac OS 10.5+
Connection TypeUSB 2.0
Included SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging StandardsUVC
Sensor TypeCMOS
Resolution1280 x 1024 pixels
Frame Rate (max)30 FPS
Dimensions10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight105g (3.7 oz)
Cable Length182cm (71.65 in)
Regulatory ApprovalCE, FCC
Product Details
MeasurementYes
Automatic Magnification ReadingNo
Extended Depth of FieldNo
Enhanced Dynamic RangeNo
Magnification LockYes
Body MaterialABS Plastic
Microtouch SensorYes
LEDsWhite (8)
PolarizationYes
Magnification Range10x - 70x
Working DistanceFar
Lens TypeGlass
Megapixels1.3 MP
Image Save Formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS)JPEG, PNG
Operating SystemWindows XP, Vista, 7, 8, 10, 11, Mac OS 10.5+
Connection TypeUSB 2.0
Included SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging StandardsUVC
Sensor TypeCMOS
Resolution1280 x 1024 pixels
Frame Rate (max)30 FPS
Dimensions10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight105g (3.7 oz)
Cable Length182cm (71.65 in)
Regulatory ApprovalCE, FCC
Optional Accessories

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
