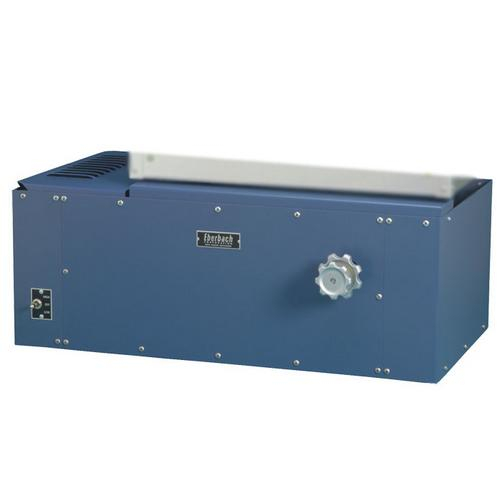

E6005, Explosion-Proof Reciprocating Shaker, 115V
E6005 Includes Only:
- Explosion Proof Reciprocal Shaker
Note: Accessories NOT Included;
The Explosion proof Mid Range Reciprocal Shaker E6005 is a variable speed shaker that oscillates at 80-240 osc/min (speed variation +/- 5%. ). For general purpose shaking in hazardous locations electrically rated: Class 1 Group D, Class 2, Groups F and G. Operates in a space 33-1/2 W x 20" D. The 1/6 HP explosion proof motor drives the same shaker mechanism as the model E6000. The explosion proof motor must be connected to an explosion proof line at the point of installation. Shaker is electrically explosion proof rated only when wired in accordance with Local Electrical Code. Stroke is fixed at 1-1/2". Maximum load is 50 lbs. Motor is supplied with power leads through a conduit box, but without switch, cord or carrier plate.
