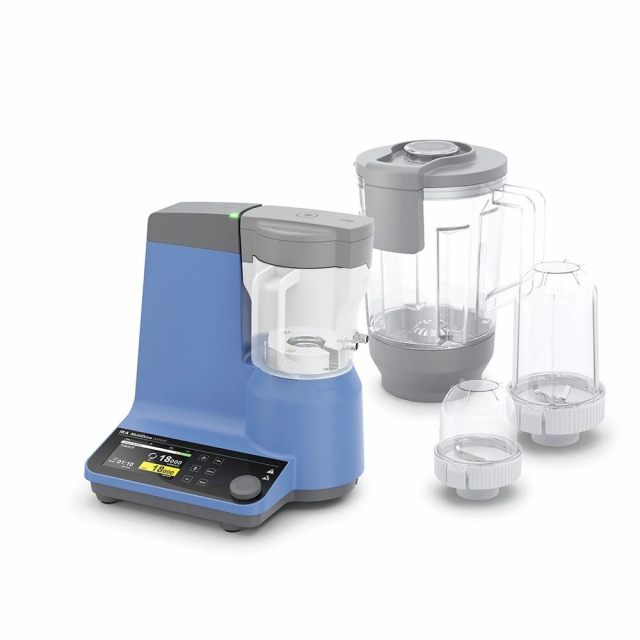

The MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels accessible. MultiDrive control mixes, grinds and is also fitted with a dispersion vessel and a disposable tube. There is a USB interface accessiblefor easy actuation and documentation respectively.

Features:

High performance
Interval operation
Integrated cooling
TFT-display
Temperature measurement
Weighing function
Variety of vessels (accessory)

0025002644 Includes Only:

MultiDrive control
Socket wrench
Disassembly tool 1
Disassembly tool 2
Cleaning brush
USB Cable - USB A to Micro-B, 2 m

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Process type	Batch
Operating principle	Cutting/impact/blending/dispersing
Motor rating input	1000 W
Motor rating output	800 W
Speed range	3000 - 20000 rpm
Speed deviation	±5 %
Power-ON time	5 min
Power-OFF time	10 min
Motor principle	Brushless DC
Display	TFT
RFID reader/writer unit	Yes
Temperature display	Yes
Temperature measurement resolution	0.1 K
Accuracy of temperature measurement	±1 K
Temperature limit min.	-50 °C
Temperature limit max.	120 °C
Monitoring maintain time	Yes
Weighing function	Yes
Weighing range	5 - 4000 g
Weighing resolution	0.002 lb
Load capacity weighing function max.	8.81 lb
Weighing accuracy	±(0.3%+2) g
Vessels detection	Yes
Ramp programming	Yes
Dimensions (W x H x D)	11.81" x 13.77" x 9.84"
Weight	17.63 lb
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 31
USB interface	Yes
Bluetooth interface	Yes
Voltage	100 - 120 V
Frequency	50/60 Hz
Power input	1000 W
