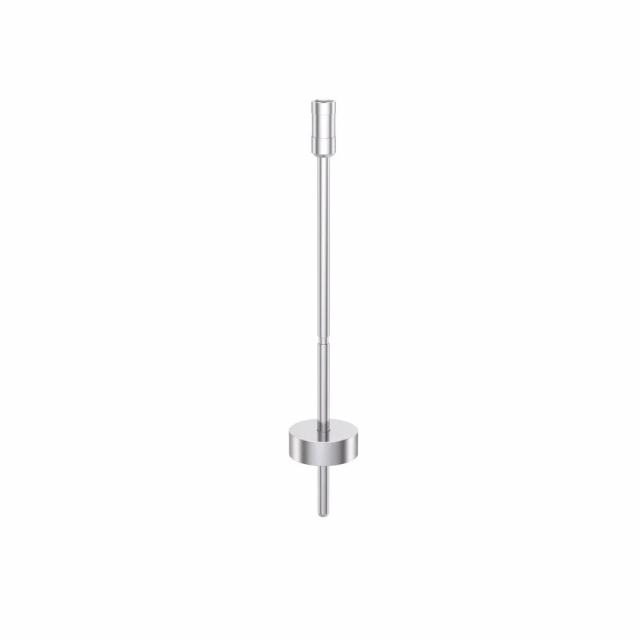

IKA 0025006830 – SP-3 Standard Spindle, SP-3 Spindle, Disc Spindle Geometry: Disc

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Ika Works, 0025006830, Standard Spindle

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Spindle geometry	Disc
Connection	Thread M2.5 LH
Quick plug connector	Yes
Hook connector	Yes
Diameter	0.47"
Immersion depth	1.96"
Spindle length	4.52"
Mounting Bracket	Yes
Sample container:	600mL beaker low
Viscosity Accuracy (FSR)	1 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	599.9 mPa.s
Max. FSR match ROTAVISC lo-vi	119974 mPa.s
Min. FSR match ROTAVISC me-vi	6400.0 mPa.s
Max. FSR match ROTAVISC me-vi	1280000 mPa.s
Min. FSR match ROTAVISC hi-vi I	12800.0 mPa.s
Max. FSR match ROTAVISC hi-vi I	2560000 mPa.s
Min. FSR match ROTAVISC hi-vi II	51200 mPa.s
Max. FSR match ROTAVISC hi-vi II	10240000 mPa.s
Material in contact with medium	AISI 316L / 1.4571
Dimensions (W x H x D)	0.55" x 4.60" x 0.55"
Weight	0.024 lb

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Spindle geometry	Disc
Connection	Thread M2.5 LH
Quick plug connector	Yes
Hook connector	Yes
Diameter	0.47"
Immersion depth	1.96"
Spindle length	4.52"
Mounting Bracket	Yes
Sample container:	600mL beaker low
Viscosity Accuracy (FSR)	1 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	599.9 mPa.s
Max. FSR match ROTAVISC lo-vi	119974 mPa.s
Min. FSR match ROTAVISC me-vi	6400.0 mPa.s
Max. FSR match ROTAVISC me-vi	1280000 mPa.s
Min. FSR match ROTAVISC hi-vi I	12800.0 mPa.s
Max. FSR match ROTAVISC hi-vi I	2560000 mPa.s
Min. FSR match ROTAVISC hi-vi II	51200 mPa.s
Max. FSR match ROTAVISC hi-vi II	10240000 mPa.s
Material in contact with medium	AISI 316L / 1.4571
Dimensions (W x H x D)	0.55" x 4.60" x 0.55"
Weight	0.024 lb

Note: Please read description carefully. Do not base your order on the picture presented.
