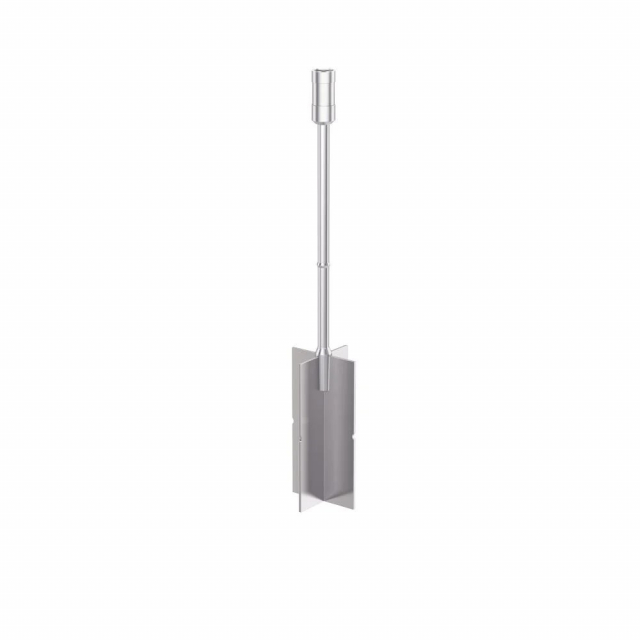

IKA 0025006854 – Van-SP-2 Vane Spindle, Thread M2.5 LH Min. FSR Match Rotavisc Hi-Vi I: 1110 mPa.s

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Min. FSR Match Rotavisc Hi-Vi I:: Min. FSR Match Rotavisc Hi-Vi I: 1110 mPa.s

Ika Works, 0025006854, Vane Spindle

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Spindle geometry	Vane
Connection	Thread M2.5 LH
Quick plug connector	Yes
Hook connector	Yes
Diameter	0.82"
Immersion depth	2.71"
Spindle length	4.80"
Viscosity Accuracy (FSR)	2 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	52 mPa.s
Max. FSR match ROTAVISC lo-vi	10404 mPa.s
Min. FSR match ROTAVISC me-vi	555 mPa.s
Max. FSR match ROTAVISC me-vi	111000 mPa.s
Min. FSR match ROTAVISC hi-vi I	1110 mPa.s
Max. FSR match ROTAVISC hi-vi I	222000 mPa.s
Min. FSR match ROTAVISC hi-vi II	4440 mPa.s
Max. FSR match ROTAVISC hi-vi II	888000 mPa.s
Material in contact with medium	AISI 316L / 1.4571
Dimensions (W x H x D)	0.86" x 4.88" x 0.86"
Weight	0.041 lb

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Spindle geometry	Vane
Connection	Thread M2.5 LH
Quick plug connector	Yes
Hook connector	Yes
Diameter	0.82"
Immersion depth	2.71"
Spindle length	4.80"
Viscosity Accuracy (FSR)	2 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	52 mPa.s
Max. FSR match ROTAVISC lo-vi	10404 mPa.s
Min. FSR match ROTAVISC me-vi	555 mPa.s
Max. FSR match ROTAVISC me-vi	111000 mPa.s
Min. FSR match ROTAVISC hi-vi I	1110 mPa.s
Max. FSR match ROTAVISC hi-vi I	222000 mPa.s
Min. FSR match ROTAVISC hi-vi II	4440 mPa.s
Max. FSR match ROTAVISC hi-vi II	888000 mPa.s
Material in contact with medium	AISI 316L / 1.4571
Dimensions (W x H x D)	0.86" x 4.88" x 0.86"
Weight	0.041 lb

Note: Please read description carefully. Do not base your order on the picture presented.
