IKA 0002900001 A 11 Basic Analytical Mill, 115V

  • Brand IKA
  • Part # 0002900001
  • Model # A 11 Basic
  • Condition
    Brand New
IKA 0002900001
Additional image #1 for IKA 0002900001
Additional image #2 for IKA 0002900001

Availability
Typically In Stock
Check Availability
Quantity
Share:

Batch mill for 2 different grinding procedures:

Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery). Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery).

Features:

  • Moist and gluey materials can be pulverized by adding water

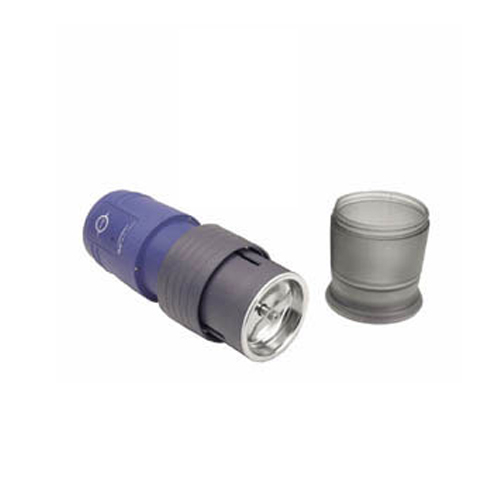

  • Grinding chamber made of Tefcel (PTFE, glass fiber-reinforced) with stainless steel inlet (1.4571), useful volume 80 ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamber
  • Optionally, a 250 ml grinding chamber is available
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Process typebatch
Operating principlecutting/impact
Motor rating input160 W
Motor rating output100 W
Speed max.28000 rpm
Circumferential speed max.53 m/s
Usable volume max.80 ml
Feed hardness max.6 Mohs
Feed grain size max.10 mm
Material beater/cutterstainless steel 1.4034
Material milling chamberstainless steel 1.4571
Power-on time ON1 min
Power-om time OFF10 min
Milling chamber, can be cooled with waterno
Mill feed can be cooled in milling chamber with dry iceyes
Mill feed can be cooled in milling chamber with liquid nitrogenyes
Dimensions (W x H x D)85 x 240 x 85 mm
Weight1.5 kg
Permissible ambient temperature5 - 40 °C
Permissible relative moisture80 %
Protection class according to DIN EN 60529IP 43
Voltage100 - 115 V
Frequency50/60 Hz
Power input160 W
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Process typebatch
Operating principlecutting/impact
Motor rating input160 W
Motor rating output100 W
Speed max.28000 rpm
Circumferential speed max.53 m/s
Usable volume max.80 ml
Feed hardness max.6 Mohs
Feed grain size max.10 mm
Material beater/cutterstainless steel 1.4034
Material milling chamberstainless steel 1.4571
Power-on time ON1 min
Power-om time OFF10 min
Milling chamber, can be cooled with waterno
Mill feed can be cooled in milling chamber with dry iceyes
Mill feed can be cooled in milling chamber with liquid nitrogenyes
Dimensions (W x H x D)85 x 240 x 85 mm
Weight1.5 kg
Permissible ambient temperature5 - 40 °C
Permissible relative moisture80 %
Protection class according to DIN EN 60529IP 43
Voltage100 - 115 V
Frequency50/60 Hz
Power input160 W
Note

Note: Please read description carefully. Do not base your order on the picture presented.
