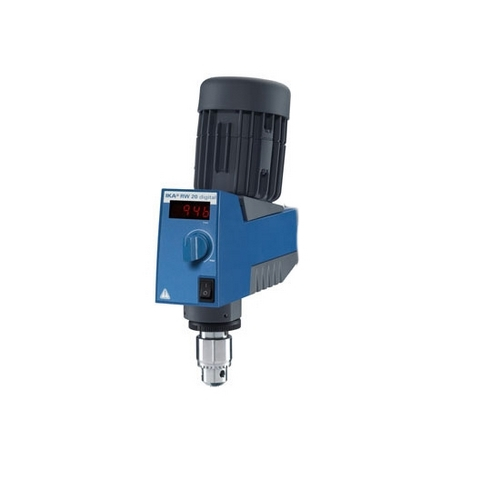

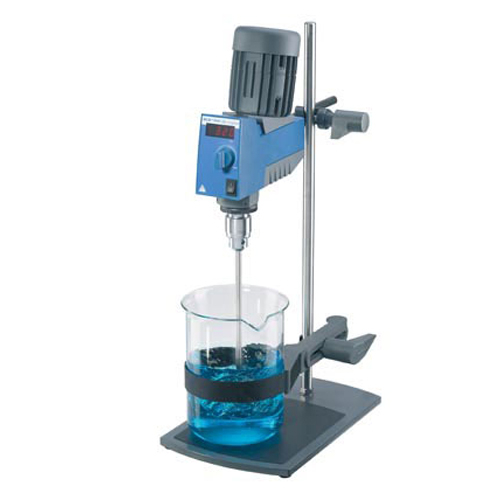

IKA 0003593001 RW 20 20 L Digital Laboratory Stirrer, 115V

  • Brand IKA
  • Part # 0003593001
  • Model # RW 20 Digital
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

0003593001 Includes Only:

  • Chuck key
  • Operation instructions

Features:

  • Digital display
  • Robust, slimline, ergonomic design
  • Technical improvements on the trusted RW 20 series designs
  • With constant power-drive
  • Two speed ranges for universal use from 60 - 2.000 rpm
  • Push-through agitator shafts (only when stationary)
  • For stirring quantities of up to 20 l (H2O)
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
Stirring quantity max. per stirring position (H2O)20 l
Motor rating input70 W
Motor rating output35 W
Speed displayLED
Speed range60 - 2000 rpm
Viscosity max.10000 mPas
Output max. at stirring shaft26 W
Permissible ON time100 %
Torque max. at stirring shaft150 Ncm
Torque max. at stirring shaft at 60 1/min (overload)300 Ncm
Torque max. at stirring shaft at 100 1/min150 Ncm
Torque max. at stirring shaft at 1.000 1/min24 Ncm
Speed range I (50 Hz)60 - 500 rpm
Speed range II (50 Hz)240 - 2000 rpm
Speed range I (60 Hz)72 - 600 rpm
Speed range II (60 Hz)288 - 2400 rpm
Speed controlstepless
Setting accuracy speed1 ±rpm
Deviation of speed measurement30 ±rpm
Stirring element fasteningchuck
Chuck range diameter0.5 - 10 mm
Hollow shaft, inner diameter10.5 mm
Hollow shaft (push-through - when stopped)yes
Fastening on standextension arm
Extension arm diameter13 mm
Extension arm length160 mm
Speed controlmechanical
Nominal torque1.5 Nm
Dimensions (W x H x D)88 x 294 x 212 mm
Weight3.1 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 20
Voltage220 - 240 / 100 - 115 V
Frequency50/60 Hz
Power input72 W
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Stirring quantity max. per stirring position (H2O)20 l
Motor rating input70 W
Motor rating output35 W
Speed displayLED
Speed range60 - 2000 rpm
Viscosity max.10000 mPas
Output max. at stirring shaft26 W
Permissible ON time100 %
Torque max. at stirring shaft150 Ncm
Torque max. at stirring shaft at 60 1/min (overload)300 Ncm
Torque max. at stirring shaft at 100 1/min150 Ncm
Torque max. at stirring shaft at 1.000 1/min24 Ncm
Speed range I (50 Hz)60 - 500 rpm
Speed range II (50 Hz)240 - 2000 rpm
Speed range I (60 Hz)72 - 600 rpm
Speed range II (60 Hz)288 - 2400 rpm
Speed controlstepless
Setting accuracy speed1 ±rpm
Deviation of speed measurement30 ±rpm
Stirring element fasteningchuck
Chuck range diameter0.5 - 10 mm
Hollow shaft, inner diameter10.5 mm
Hollow shaft (push-through - when stopped)yes
Fastening on standextension arm
Extension arm diameter13 mm
Extension arm length160 mm
Speed controlmechanical
Nominal torque1.5 Nm
Dimensions (W x H x D)88 x 294 x 212 mm
Weight3.1 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 20
Voltage220 - 240 / 100 - 115 V
Frequency50/60 Hz
Power input72 W
