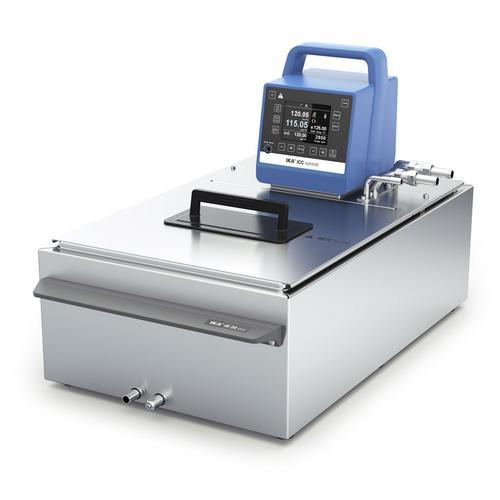

IKA 0008036400 ICC Control Pro 20 C Heating Bath Circulator

  • Brand IKA
  • Part # 0008036400
  • Model # ICC Control Pro 20 С
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

0008036400 Includes Only:

  • ICC control compact immersion circulator
  • IB 20 pro stainless steel bath (size L)
  • BL.ICC large bridge
  • CL.ICC large cover
  • PCS.ICC pump connection set
  • CC2 cooling coil
  • PT 100.30 temperature sensor

IKA facilitates the configuration of your temperature control system by offering "ready for connection" packages with all necessary accessories. Total: 354 x 641 x 388 mm. Bath opening: 255 x 309 mm (dimensions to set plate at the bottom of bath). Max. bath opening: 292 x 325 mm (dimensions at the upper edge of the bath). Immersion depth: 85 mm–125 mm. Max. temperature in the stainless steel bath ("pro" series): 150 °C.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
Appliance typeCompact immersion circulators
Class designation acc. DIN 12876III
Identification according to DIN 12876FL
Heat output2000 W
Working temperatureroom temp. +10K at1000rpm - 150 °C
Operating temperature min. (with external cooling)-20 °C
Temperature displayyes
Temperature controlPT 100
Working temperature sensorPT 100
Safety temperature sensorPT1000
Working temperature displayTFT
Safety temperature displayTFT
Temperature stability DIN 128760.01 ±K
Connection for ext. temperature sensorPT 100
Display resolution0.1 K
Display for operation with ext. sensoryes
Set temperature resolution0.1 ±K
Warning function opticalyes
Warning function acousticyes
Warning function excess temperatureyes
Adjustable safety circuit0 - 160 °C
Sub-level protectionyes
Over-level protectionyes
Pump typePressure- / suction pump
Pump capacity adjustableyes
Pump pressure max. (0 liters discharge flow)0.3 bar
Pressure pump (suction side) (0 liter flow)0.2 bar
Flow rate max. (0 bar back pressure)18 l/min
Bath depth min.150 mm
Calibration optionyes
Appliance fastenerclamp
Technical data complies with the standardDIN 12876
Permissible ON time100 %
Dimensions (W x H x D)145 x 340 x 200 mm
Weight18.42 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
RS 232 interfaceyes
USB interfaceyes
Voltage230 / 115 V
Frequency50/60 Hz
Power input2100 W
Product Details
Appliance typeCompact immersion circulators
Class designation acc. DIN 12876III
Identification according to DIN 12876FL
Heat output2000 W
Working temperatureroom temp. +10K at1000rpm - 150 °C
Operating temperature min. (with external cooling)-20 °C
Temperature displayyes
Temperature controlPT 100
Working temperature sensorPT 100
Safety temperature sensorPT1000
Working temperature displayTFT
Safety temperature displayTFT
Temperature stability DIN 128760.01 ±K
Connection for ext. temperature sensorPT 100
Display resolution0.1 K
Display for operation with ext. sensoryes
Set temperature resolution0.1 ±K
Warning function opticalyes
Warning function acousticyes
Warning function excess temperatureyes
Adjustable safety circuit0 - 160 °C
Sub-level protectionyes
Over-level protectionyes
Pump typePressure- / suction pump
Pump capacity adjustableyes
Pump pressure max. (0 liters discharge flow)0.3 bar
Pressure pump (suction side) (0 liter flow)0.2 bar
Flow rate max. (0 bar back pressure)18 l/min
Bath depth min.150 mm
Calibration optionyes
Appliance fastenerclamp
Technical data complies with the standardDIN 12876
Permissible ON time100 %
Dimensions (W x H x D)145 x 340 x 200 mm
Weight18.42 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
RS 232 interfaceyes
USB interfaceyes
Voltage230 / 115 V
Frequency50/60 Hz
Power input2100 W
Optional Accessories

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
