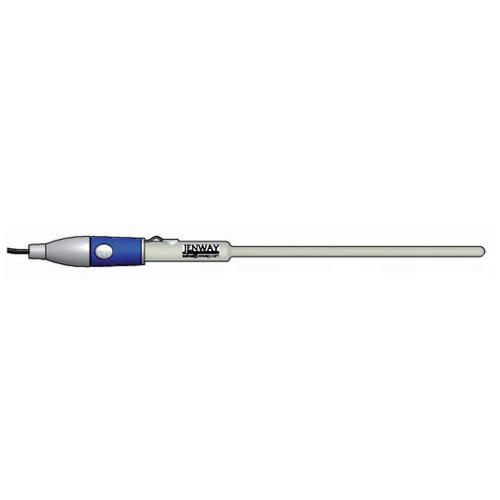

Jenway 99960-41 – 6.0 mm. Stem, Long Reach Life Science pH Electrode Junction Type: Frit Ceramic, Applications: Measurement of Samples in Test Tubes

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

This electrode is designed for the measurement of samples in test tubes and microfuge tubes.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type	Combination
Sealed/refillable	Sealed
Filling solution	4.0M KCl / AgCl
End type	Bulb
pH Range	0-14
Temperature range	0-100° C
Reference type	AgCl, gel filled single junction
Junction type	Frit ceramic
Body material	Glass
Dimensions (length x diameter)	150 mm. x 6 mm.
Cable Length	1 meter (nominal)
Termination	BNC
Isopotential	0 ± 20 mV
Slope	56 to 61.7mV / pH at 25° C
Response time	95% of final reading in <30 seconds
Stability	< 1 mV (between 1 and 2 minutes)
Impedance	< 300 MO at 25° C

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Type	Combination
Sealed/refillable	Sealed
Filling solution	4.0M KCl / AgCl
End type	Bulb
pH Range	0-14
Temperature range	0-100° C
Reference type	AgCl, gel filled single junction
Junction type	Frit ceramic
Body material	Glass
Dimensions (length x diameter)	150 mm. x 6 mm.
Cable Length	1 meter (nominal)
Termination	BNC
Isopotential	0 ± 20 mV
Slope	56 to 61.7mV / pH at 25° C
Response time	95% of final reading in <30 seconds
Stability	< 1 mV (between 1 and 2 minutes)
Impedance	< 300 MO at 25° C

Note: Please read description carefully. Do not base your order on the picture presented.
