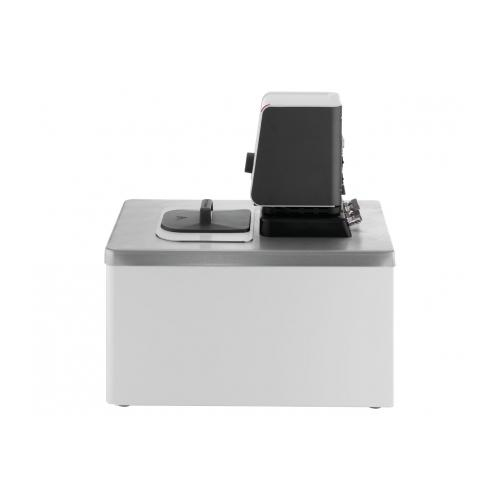

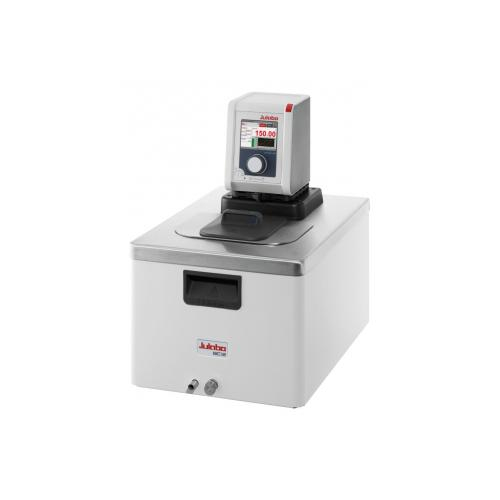

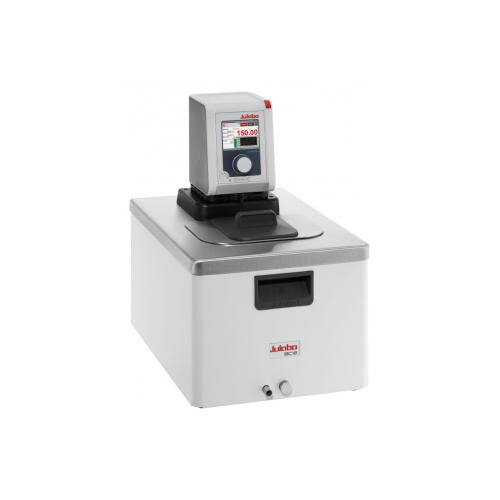

Julabo USA 9021512.04.A DD-BC12 Heating Circulator, Analog 230V/50Hz

Voltage: Analog 230V/50Hz, UK Plug
  • Brand Julabo USA
  • Part # 9021512.04.A
  • Model # DD-BC12
  • Condition
    Brand New
Julabo USA 9021512.04.A
Additional image #1 for Julabo USA 9021512.04.A
Additional image #2 for Julabo USA 9021512.04.A
Additional image #3 for Julabo USA 9021512.04.A

Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Voltage:
Voltage: Analog 230V/50Hz, UK Plug

Julabo, 9021512.04.A, DD-BC12 Heating Circulator Analog 230V/50Hz, UK Plug

Features with all optional accessories:

  • Powerful and infinitely adjustable pressure pump
  • Flow rate 27 l/min, pressure 0.7 bar
  • Easy switching between internal and external circulation
  • Large color TFT display, multilingual interface
  • Central rotary knob (controller) simplifies operation
  • Integrated programmer
  • Integrated external Pt100 connection
  • USB connection
  • RS232 interface or analog interfaces (optional)
  • Integrated drain makes emptying liquid easy and safe.
  • High-quality thermal insulation of the bath tank
  • Integrated programmer for 8 x 60 program steps
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Dimensions (W x L x H)13 x 19.3 x 18.5 in.
Filling volume8.5 ... 12 l
Weight26.2 lbs
Pump connectionsM16x1 male
Pump connectionsM16x1 male
Barbed fittings inner diameter8/12 mm
Working temperature range+20 ... +200 °C
Temperature stability±0.01 °C
Setting the resolution of the temperature display0.01 °C
Ambient temperature+5 ... +40 °C
Pump capacity flow rate8 ... 27 l/min
Pump capacity flow pressure1.5 ... 10.2 psi
Viscosity max.50 cST
Bath tankStainless steel
Bath coverintegrated
Usable bath opening (W x L / D)8.7 x 5.9 / 7.9 in.
External pt100 sensor connectionintegrated
Integrated programmer8x60 steps
Temperature controlPID2
Absolute temperature calibration3 Point Calibration
Temperature display3.5" TFT Display
Temperature settingShaft Encoder
Electronic Timer hr:min99 ... 59
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Dimensions (W x L x H)13 x 19.3 x 18.5 in.
Filling volume8.5 ... 12 l
Weight26.2 lbs
Pump connectionsM16x1 male
Pump connectionsM16x1 male
Barbed fittings inner diameter8/12 mm
Working temperature range+20 ... +200 °C
Temperature stability±0.01 °C
Setting the resolution of the temperature display0.01 °C
Ambient temperature+5 ... +40 °C
Pump capacity flow rate8 ... 27 l/min
Pump capacity flow pressure1.5 ... 10.2 psi
Viscosity max.50 cST
Bath tankStainless steel
Bath coverintegrated
Usable bath opening (W x L / D)8.7 x 5.9 / 7.9 in.
External pt100 sensor connectionintegrated
Integrated programmer8x60 steps
Temperature controlPID2
Absolute temperature calibration3 Point Calibration
Temperature display3.5" TFT Display
Temperature settingShaft Encoder
Electronic Timer hr:min99 ... 59
Note

Note: Please read description carefully. Do not base your order on the picture presented.
