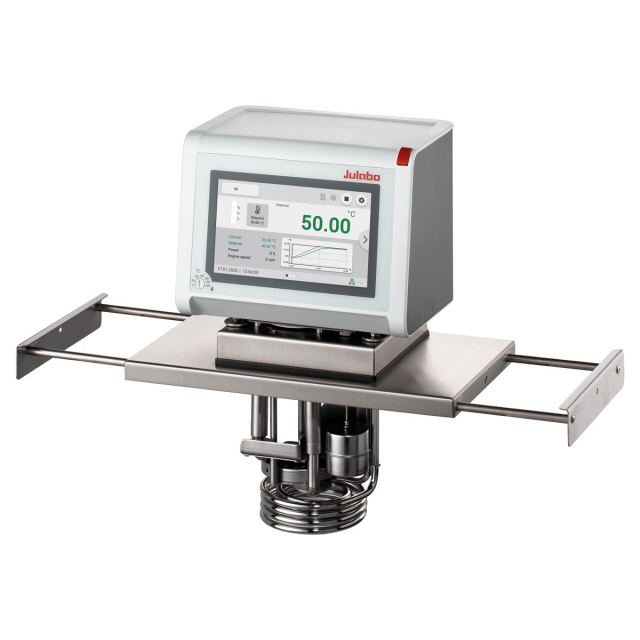

MAGIO MX-Z Bridge mounted heating circulator with immersion depth of 200mm (7.9″) and extendable bridge (33 to 68 cm; 13″ to 26.7″) for any bath tank up to 100 liters with 3 kW heating power to +300 °C. Large, color touchscreen UI with built-in help functions. For internal and external temperature applications. Includes Intelligent Cascade Control, self optimizing for optimum results with settings for band limit, limit setting, co-speed factor and control dynamics.
A variable speed pressure / suction pump provides strong circulation for internal or external applications. A built-in cooling coil enables counter cooling with tap water. Barbed fittings for 8 and 12 mm ID tubing are included (pump connections M16x1 male). Includes Pt100 connection for external monitoring and control, electronically adjustable pressure/suction pump, RS232/RS285, USB and Ethernet ports with optional slot for analog communication (requires module 9900100). Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Features:
- TFT Color Touchscreen
- Multilingual
- Input for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration
- Pt100 External sensor connection for measurement and control
- Continuously variable pressure/suction pump
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232/RS485, USB and Ethernet interface for online communication
- Integrated programmer
- Expandable bridge from 31 to 66 cm
- Built-in cooling coil
