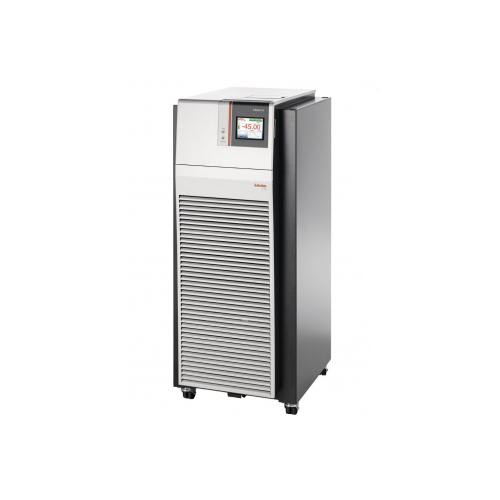

Julabo USA 9420452.16 – A45 Process Circulator, 208-230V/3Ph/60Hz Voltage: 208-230V/3Ph/60Hz

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions(W x L x H)	53 x 66.5 x 126 cm
Internal usable expansion volume	7.5 l
Minimal process volume	7.5 l
Active heat exchanger volume	3.5 l
Weight	210 kg
Pump connections	M30x1.5 male
Pump connections	M30x1.5 male
Working temperature range	-45.0 ... +250.0 °C
Temperature stability	+/-0.05 ... +/-0.1 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40 °C
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Dimensions(W x L x H)	53 x 66.5 x 126 cm
Internal usable expansion volume	7.5 l
Minimal process volume	7.5 l
Active heat exchanger volume	3.5 l
Weight	210 kg
Pump connections	M30x1.5 male
Pump connections	M30x1.5 male
Working temperature range	-45.0 ... +250.0 °C
Temperature stability	+/-0.05 ... +/-0.1 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40 °C
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Note: Please read description carefully. Do not base your order on the picture presented.
