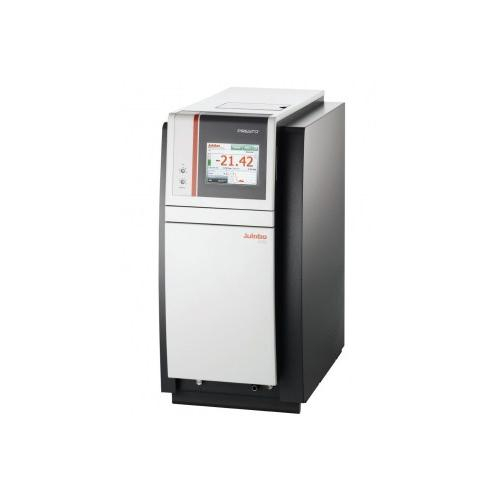

Julabo USA 9421401.33 – W40 Process Circulator, 230V/50Hz Voltage: 230V/50Hz

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions(W x L x H)	33 x 59 x 67 cm
Internal usable expansion volume	2.7 l
Minimal process volume	3.5 l
Active heat exchanger volume	1.7 l
Weight	78 kg
Pump connections	M24x1.5 male
Pump connections	M24x1.5 male
Cooling Water Connection	G¾ in
Working temperature range	-40.0 ... +250.0 °C
Temperature stability	±0.01 ... ±0.05 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	1-stage Water
Cooling water pressure max.	6 ... 5.5 bar
Cooling water difference pressure	0.5 bar
Cooling water temperature max.	40 °C
Cooling water consumption	1 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Dimensions(W x L x H)	33 x 59 x 67 cm
Internal usable expansion volume	2.7 l
Minimal process volume	3.5 l
Active heat exchanger volume	1.7 l
Weight	78 kg
Pump connections	M24x1.5 male
Pump connections	M24x1.5 male
Cooling Water Connection	G¾ in
Working temperature range	-40.0 ... +250.0 °C
Temperature stability	±0.01 ... ±0.05 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	1-stage Water
Cooling water pressure max.	6 ... 5.5 bar
Cooling water difference pressure	0.5 bar
Cooling water temperature max.	40 °C
Cooling water consumption	1 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Note: Please read description carefully. Do not base your order on the picture presented.
