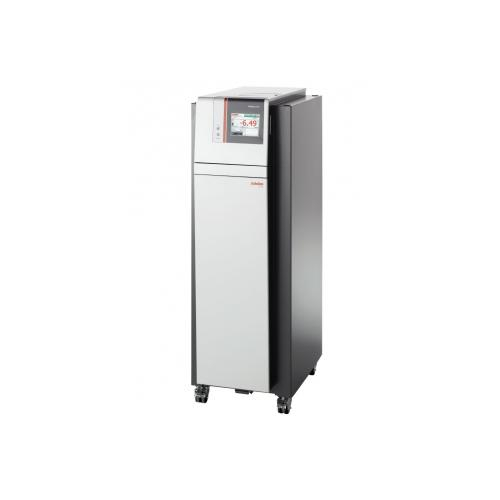

Julabo USA 9421801.03 – W80 Process Circulator, 208V/50Hz Voltage: 208V/50Hz

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions(W x L x H)	16.9 x 25.6 x 49.6 in.
Internal usable expansion volume	5.6 l
Minimal process volume	3.9 l
Active heat exchanger volume	1.7 l
Weight	350.5 lbs
Pump connections	M24x1.5 male
Pump connections	M24x1.5 male
Cooling Water Connection	G¾ in.
Working temperature range	-80.0 ... +250.0 °C
Temperature stability	+/-0.01 ... +/-0.05 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	2-stage Water
Cooling water pressure max.	87 ... 79.8 psi
Cooling water difference pressure	7.3 psi
Cooling water temperature max.	30 °C
1.0Cooling water consumption	2 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Dimensions(W x L x H)	16.9 x 25.6 x 49.6 in.
Internal usable expansion volume	5.6 l
Minimal process volume	3.9 l
Active heat exchanger volume	1.7 l
Weight	350.5 lbs
Pump connections	M24x1.5 male
Pump connections	M24x1.5 male
Cooling Water Connection	G¾ in.
Working temperature range	-80.0 ... +250.0 °C
Temperature stability	+/-0.01 ... +/-0.05 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	2-stage Water
Cooling water pressure max.	87 ... 79.8 psi
Cooling water difference pressure	7.3 psi
Cooling water temperature max.	30 °C
1.0Cooling water consumption	2 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Note: Please read description carefully. Do not base your order on the picture presented.
