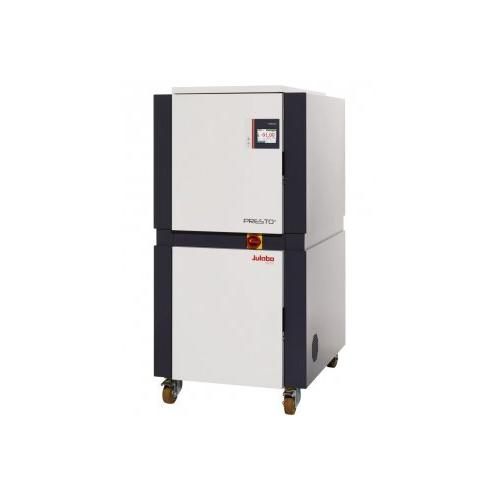

Julabo, 9421912.17.CSA/UL, W91 Process Circulator, 480V/3Ph/60Hz with NVLAP Accredited Certificate

Features with all optional accessories:

Rapid heating and cooling
Wide working temperature ranges using one bath fluid
Designed to quickly compensate exothermic and endothermic reactions
Unsurpassed power and efficiency
Space optimized design creates more room directly next to the units
Integrated 5.7" industrial color touchscreen displays all essential information and enables simple fingertip control
Extensive warning, protection, and monitoring functions with detailed self-explanatory messages
Electronic level indication
Powerful circulating pumps, select a stage or a specific pressure
SD-Card slot
Connections for USB, Ethernet, RS232, and Alarm output
Optional analog connections, RS485, Profibus DP, Modbus
Pump pressure up to 5.5 bar, max. flow rate 80 l/min
Intelligent warning and safety functions

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions(W x L x H)	95 x 127 x 190 cm
Internal usable expansion volume	40 l
Minimal process volume	28 l
Active heat exchanger volume	16 l
Weight	870 kg
Pump connections	M38x1.5 male
Pump connections	M38x1.5 male
Cooling Water Connection	G¾ in
Working temperature range	-91.0 ... +250.0 °C
Temperature stability	±0.05 ... ±0.2 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	2-stage Water
Cooling water pressure max.	6 ... 5.5 bar
Cooling water difference pressure	0.5 bar
Cooling water temperature max.	30 °C
Cooling water consumption	16 ... 43 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Dimensions(W x L x H)	95 x 127 x 190 cm
Internal usable expansion volume	40 l
Minimal process volume	28 l
Active heat exchanger volume	16 l
Weight	870 kg
Pump connections	M38x1.5 male
Pump connections	M38x1.5 male
Cooling Water Connection	G¾ in
Working temperature range	-91.0 ... +250.0 °C
Temperature stability	±0.05 ... ±0.2 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	2-stage Water
Cooling water pressure max.	6 ... 5.5 bar
Cooling water difference pressure	0.5 bar
Cooling water temperature max.	30 °C
Cooling water consumption	16 ... 43 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Note: Please read description carefully. Do not base your order on the picture presented.
