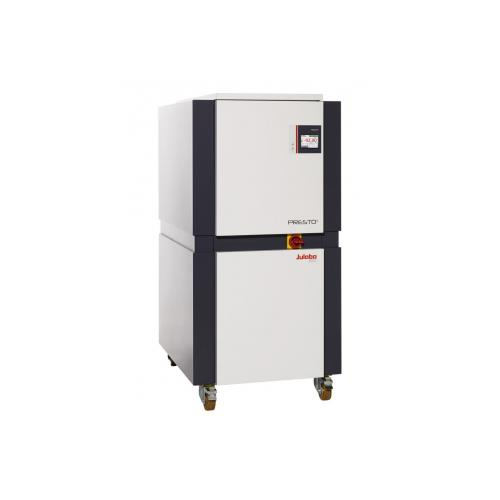

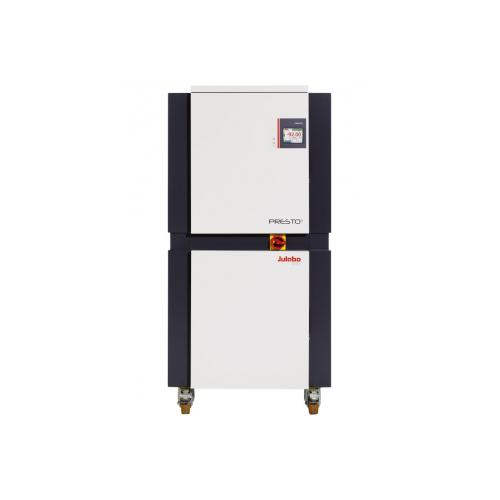

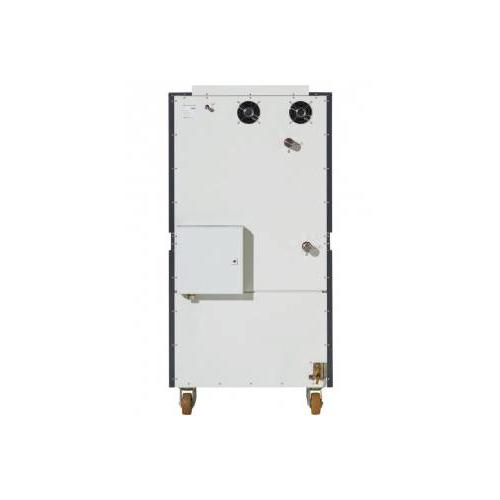

Julabo USA 9421922.17 – W92 Process Circulator, 480V/3Ph/60Hz Voltage: 480V/3Ph/60Hz

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Features:

Rapid heating and cooling
Wide working temperature ranges using one bath fluid
Designed to quickly compensate exothermic and endothermic reactions
Unsurpassed power and efficiency
Space optimized design creates more room directly next to the units
Integrated 5.7" industrial color touchscreen displays all essential information and enables simple fingertip control
Extensive warning, protection, and monitoring functions with detailed self-explanatory messages
Intelligent warning and safety functions
Electronic level indication
Powerful circulating pumps, select a stage or a specific pressure
SD-Card slot

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions(W x L x H)	37.4 x 50 x 74.8 in.
Internal usable expansion volume	40 l
Minimal process volume	28 l
Active heat exchanger volume	16 l
Weight	1918 lbs
Pump connections	M38x1.5 male
Pump connections	M38x1.5 male
Cooling Water Connection	G¾ in.
Working temperature range	-92.0 ... +250.0 °C
Temperature stability	±0.05 ... ±0.2 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	2-stage Water
Cooling water pressure max.	87 ... 79.8 psi
Cooling water difference pressure	7.3 psi
Cooling water temperature max.	30 °C
1.0Cooling water consumption	16 ... 43 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Dimensions(W x L x H)	37.4 x 50 x 74.8 in.
Internal usable expansion volume	40 l
Minimal process volume	28 l
Active heat exchanger volume	16 l
Weight	1918 lbs
Pump connections	M38x1.5 male
Pump connections	M38x1.5 male
Cooling Water Connection	G¾ in.
Working temperature range	-92.0 ... +250.0 °C
Temperature stability	±0.05 ... ±0.2 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	2-stage Water
Cooling water pressure max.	87 ... 79.8 psi
Cooling water difference pressure	7.3 psi
Cooling water temperature max.	30 °C
1.0Cooling water consumption	16 ... 43 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Note: Please read description carefully. Do not base your order on the picture presented.
