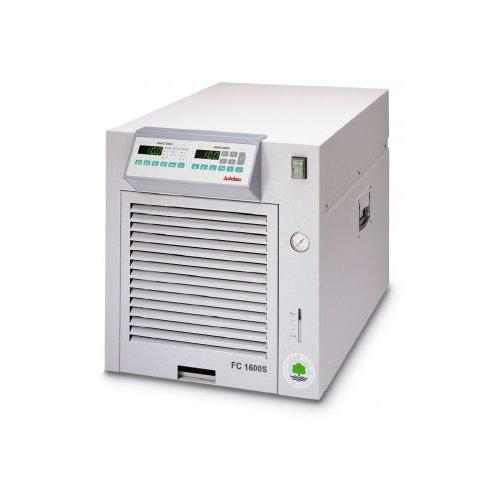

Julabo USA 9600163.3 – FC1600S Chiller, 230V/50Hz Voltage: 230V/50Hz

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Features:

Adjustable ratio for feed/return temperatures
Easy filling system located at the front
Activation of pump for filling
Bright multi-display (LED)
Upper and lower temperature warning functions with interval tone
Integrated freezing protection and dry-running protection
Rapid and easy operation via seamless, splash-proof keypad
Liquid level indication on the front
Self-test, reciprocal sensor monitoring, pump motor and compressor overload protection
Complete shut-down with audible signal in case of an alarm
Removable venting grid for simplified removal of dust
RS232 interface for PC connection
High temperature stability
Integrated heater with 1.2 kW capacity

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions(W x L x H)	46 x 61 x 49 cm
Filling volume	8 ... 11 l
Weight	66 kg
Pump connections	M16x1 male
Pump connections	M16x1 male
Barbed fittings inner diameter	8/12 mm
Working temperature range	-15 ... +80 °C
Temperature stability	±0.2 °C
Temperature display resolution	0.1 °C
Ambient temperature	5 ... 40 °C
Bath tank	Stainless steel
Digital interface	RS232 / Alarm output / Standby-Input
Temperature control	PID1
Temperature display	2x LED
Temperature setting	Keypad

Dimensions(W x L x H)	46 x 61 x 49 cm
Filling volume	8 ... 11 l
Weight	66 kg
Pump connections	M16x1 male
Pump connections	M16x1 male
Barbed fittings inner diameter	8/12 mm
Working temperature range	-15 ... +80 °C
Temperature stability	±0.2 °C
Temperature display resolution	0.1 °C
Ambient temperature	5 ... 40 °C
Bath tank	Stainless steel
Digital interface	RS232 / Alarm output / Standby-Input
Temperature control	PID1
Temperature display	2x LED
Temperature setting	Keypad

Note: Please read description carefully. Do not base your order on the picture presented.
