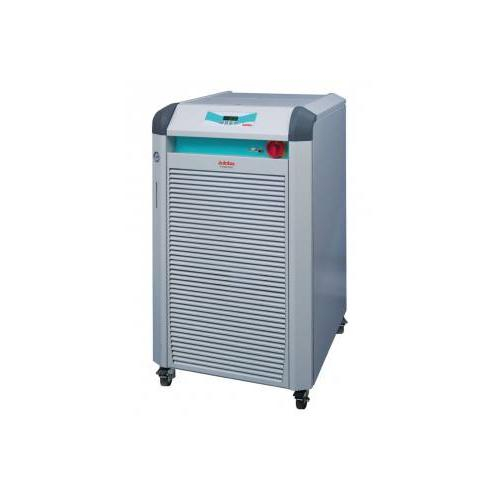

Julabo USA 9676025.13 – FLW2506 Recirculating Cooler, 230V/60Hz

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions(W x L x H)	23.6 x 29.9 x 45.3 in.
Filling volume	24 ... 30 l
Weight	352.7 lbs
Pump connections	G1¼" male
Pump connections	G1¼" male
Cooling Water Connection	G¾ in.
Barbed fittings inner diameter	1"
Working temperature range	-15 ... +40 °C
Temperature stability	±0.5 °C
Setting the resolution of the temperature display	0.1 °C
Temperature display resolution	0.1 °C
Ambient temperature	5 ... 40 °C
Return flow temperature max.	80 °C
Bath tank	Stainless steel
Cooling of compressor	1-stage Water
Cooling water pressure max.	87 psi
Cooling water difference pressure	29 ... 87 psi
Cooling water temperature max.	20 °C
1.0Cooling water consumption	4.1 l/min
Temperature control	PID1
Temperature display	LED
Temperature setting	Keypad

Dimensions(W x L x H)	23.6 x 29.9 x 45.3 in.
Filling volume	24 ... 30 l
Weight	352.7 lbs
Pump connections	G1¼" male
Pump connections	G1¼" male
Cooling Water Connection	G¾ in.
Barbed fittings inner diameter	1"
Working temperature range	-15 ... +40 °C
Temperature stability	±0.5 °C
Setting the resolution of the temperature display	0.1 °C
Temperature display resolution	0.1 °C
Ambient temperature	5 ... 40 °C
Return flow temperature max.	80 °C
Bath tank	Stainless steel
Cooling of compressor	1-stage Water
Cooling water pressure max.	87 psi
Cooling water difference pressure	29 ... 87 psi
Cooling water temperature max.	20 °C
1.0Cooling water consumption	4.1 l/min
Temperature control	PID1
Temperature display	LED
Temperature setting	Keypad

Note: Please read description carefully. Do not base your order on the picture presented.
