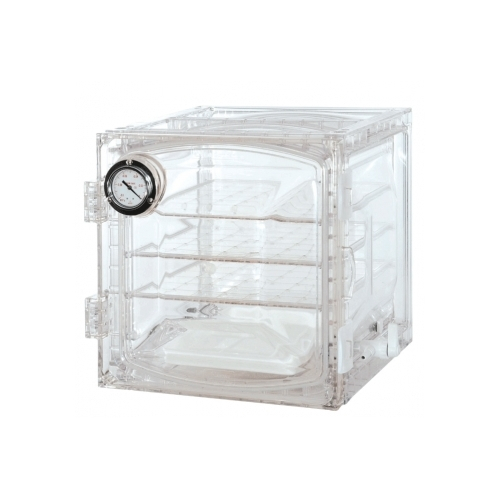

Jeio Tech Lab Companion AAAD4031 – VDC-41 Vacuum Desiccator, 16.5" x 15.7" x 15" UV Block Effect: No, Size (in): 16.5 x 15.6 x 19.3

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

Lab Companion, AAAD4031, VDC-41 Vacuum Desiccator, 16.5 x 15.7 x 15, 26.9 lbs

Features:

Maximum vacuum of 1 Torr (1.33x10-4 Mpa) for more than 72 hours.
High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment.
Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.
Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release, or gas exchange. The barbed fitting on each side secures attachment of tubing.
Maximized utilization of internal space using maximum four to six shelves depending on product sizes.
Stackable space-saving design allowing efficient usage of cramped lab space.
Easy vacuum level checking with the standard vacuum gauge attached to the front door.
Four built-in ports allowing easy attachment of tubing.
RoHS compliant

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

UV Block Effect	No
Internal Volume (L / ft)	45 / 1.6
Gauge Range (Mpa)	0 to -0.1
Nozzle (mm / inch)	9.5 / 0.37
Max. Permissible Vacuum (Bodies)	1.33 x 10-4 Mpa
Max. Load (kg / lbs) Per Shelf	5 / 11
Number of Shelves (Standard / Max.)	3 / 6
Material
Body	Polycarbonate
Perforated Sample Tray	Polycarbonate
Drying Agent Tray / Locker	Polypropylene
Vacuum Seal	Silicone Rubber
Dimension (W x D x H)
Interior (mm / inch)	355 x 374 x 445 / 14 x 14.7 x 17.5
Exterior (mm / inch)	420 x 397 x 491 / 16.5 x 15.6 x 19.3
Net Weight (kg / lbs)	12.2 / 26.9

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

UV Block Effect	No
Internal Volume (L / ft)	45 / 1.6
Gauge Range (Mpa)	0 to -0.1
Nozzle (mm / inch)	9.5 / 0.37
Max. Permissible Vacuum (Bodies)	1.33 x 10-4 Mpa
Max. Load (kg / lbs) Per Shelf	5 / 11
Number of Shelves (Standard / Max.)	3 / 6
Material
Body	Polycarbonate
Perforated Sample Tray	Polycarbonate
Drying Agent Tray / Locker	Polypropylene
Vacuum Seal	Silicone Rubber
Dimension (W x D x H)
Interior (mm / inch)	355 x 374 x 445 / 14 x 14.7 x 17.5
Exterior (mm / inch)	420 x 397 x 491 / 16.5 x 15.6 x 19.3
Net Weight (kg / lbs)	12.2 / 26.9

Note: Please read description carefully. Do not base your order on the picture presented.
