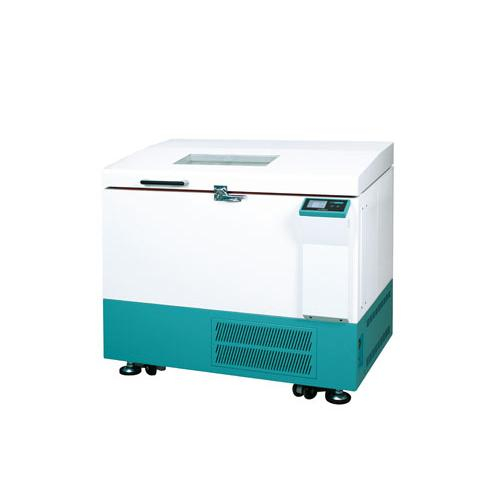

Jeio Tech Lab Companion AAH23342K ISF-7100 230V Incubated Shaker, 50/60Hz

ISF-7100 230V Incubated Shaker, 50/60Hz

Performance

• Temperature range:
  • Ambient +5°C to 80 °C for ISF-7100
• Competitive high shaking speed up to 500 rpm.
  • Speed range: 30 to 500 rpm.
• Orbital shaking motion in various diameter.
  • 25.4mm for ISF-7100/R
  • 50.8mm for ISF-7200/R
• Microprocessor PID control.
• Three point temperature calibration / Automatic tuning.
• Wide speed range even with heavy workload.
  • Ideal DD(Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
• Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
  • Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
• Pleasant test environment by the smooth acceleration and deceleration control.
  • Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
• High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
• Air-tight silicone door seal with lockable door for safe storage of samples.

Convenience

• Intuitive touch screen LCD controller with easy icons and logical menus.
• Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
• Easy sample monitoring and convenient sample loading.
  • Clear observation of samples without affecting inner chamber’s environment thanks to the transparent top viewing window with bright LED lamps.
  • The lid is inclined gently towards the front for easy observation of samples in the chamber.
  • Gas spring lid supports providing smooth motion, soft opening and closing.
• Repetitive task can be easily performed as the platform stops where it starts.
  • Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
• Corrosion resistance stainless steel interior.
• Easy-access drain system with a quick disconnect valve offers great convenience to clean up of spills.
• Built-in RS-232 port and USB port for external control and data collection.
• Sturdy foot caster, beneficial for easy mobility during installation or relocation.

Safety

• Automatic run after power interruption.
• Temperature and shaking speed deviation alarm.
• Over-current protection.
• Triple independent temperature monitor system.
  • Temperature deviation alarm (High/Low)
  • Electronic temperature limiter (High/Low)
  • Mechanical over-temperature limiter (High)
• Audible and visible open door alarms.
