Jeio Tech Lab Companion AAH45133U – BW-20H 24.5L Heating Bath, 120V Power Supply Voltage: 120V

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

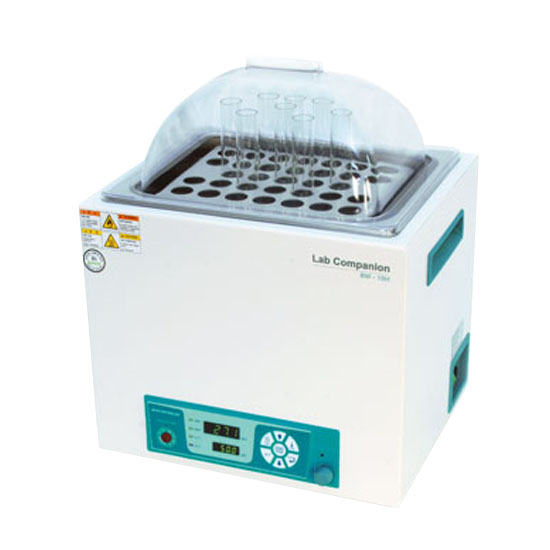

BW-20H 24.5L Heating Bath, 120V

Performance

Safety

Two independently controlled reservoirs merged into a single unit for space saving. (for Dual models)
Digital LED displays with quick adjustable dial knob. (0.1°Cresolution)
Low-profile design with sloped control panel for easier access and better safety.

Convenience

Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.
Complete safety protection system with warning alarms.
- Over-temperature, over-current protection.
Keypad lock function prevents accidental changes during operation.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Bath volume (L / cu ft)	20 / 0.7
Working temperature range (°C / °F)	Amb. +5 to 100 / Amb. +9 to 212
Temperature stability (°C / °F)	±0.1 / 0.18
Dimension	Bath opening / depth (WxL, D) (mm / inch)	498x300, 200/ 19.6x11.8, 7.9
	Exterior (WxLxH) (mm / inch)	564x372x318 / 22.2x14.6x12.5
	Net weight (kg / lbs)	15.5 / 34.2
Electrical requirements (120V, 60Hz)	8.3A

Bath volume (L / cu ft)	20 / 0.7
Working temperature range (°C / °F)	Amb. +5 to 100 / Amb. +9 to 212
Temperature stability (°C / °F)	±0.1 / 0.18
Dimension	Bath opening / depth (WxL, D) (mm / inch)	498x300, 200/ 19.6x11.8, 7.9
	Exterior (WxLxH) (mm / inch)	564x372x318 / 22.2x14.6x12.5
	Net weight (kg / lbs)	15.5 / 34.2
Electrical requirements (120V, 60Hz)	8.3A

Note: Please read description carefully. Do not base your order on the picture presented.
