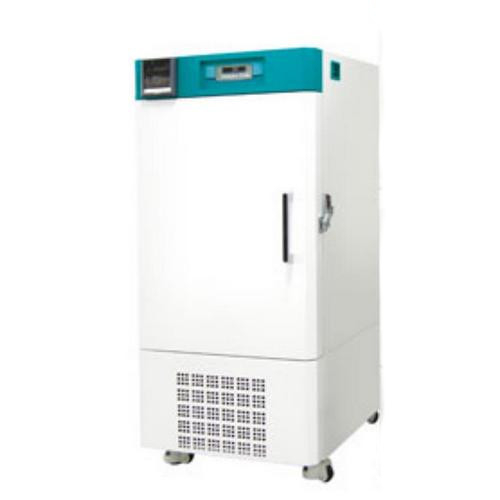

Jeio Tech Lab Companion AAHK6123U – LCH-11G Heating and Cooling Chamber 120V 60Hz Plug Type: 120V 60Hz

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Lab Companion, AAHK6123U, LCH-11G Heating and Cooling Chamber (150L) 120V 60Hz

Features with all optional accessories:

Microprocessor PID control.
Temperature calibration / Automatic tuning.
Adjustable three-step fan speed with defrosting time and period control.
Forced air convection using an optimal cross-flow fan for chamber temperature uniformity.
Energy efficiency is achieved thanks to optimization of the insulation system. The surface of the unit doesn't allow high temperatures of over 60°C .
Two independently controlled chambers merged into a single unit for space-saving.
Intuitive control panel with bright LED display (0.1°C resolution) and touch-sensitive keypad.
Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
Convenient preset function for 3 most commonly used temperature settings.
Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
Built-in cable Port to use other instruments inside the chamber. (diameter: 80mm)
RS-232 interface for external control and data collection.
Automatic shut off after overheat alarm.
Power supply leakage breaker.
Over current protection.
Open door alarm.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Chamber volume (L / cu ft)	150/5.3
Temperature range (â„ƒ / â„‰)	0 to 100 / 32 to 212
Time Heating(min.)	80 (from 20C to 100C)
Time Cooling(min.)	60 (from 100C to 40C)
No. of wire shelves (standard/max.)	2 / 12
Distance of between shelves (mm / inch)	30 / 1.2
Max. load per shelf (kg / lbs)	15 / 33.1
Permitted total load (kg / lbs)	50 / 110.2
Cable Port (mm / inch)	80 / 3.15
Interface Port	RS-232C
Electrical requirements (120V,60Hz)	13A

Chamber volume (L / cu ft)	150/5.3
Temperature range (â„ƒ / â„‰)	0 to 100 / 32 to 212
Time Heating(min.)	80 (from 20C to 100C)
Time Cooling(min.)	60 (from 100C to 40C)
No. of wire shelves (standard/max.)	2 / 12
Distance of between shelves (mm / inch)	30 / 1.2
Max. load per shelf (kg / lbs)	15 / 33.1
Permitted total load (kg / lbs)	50 / 110.2
Cable Port (mm / inch)	80 / 3.15
Interface Port	RS-232C
Electrical requirements (120V,60Hz)	13A

Note: Please read description carefully. Do not base your order on the picture presented.
