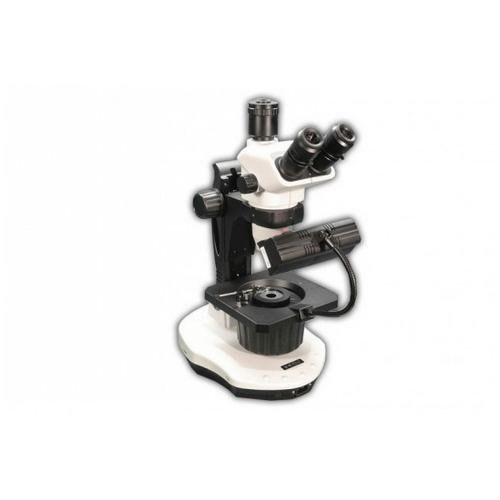

Meiji Techno GMZ-51 BF/DF Trinocular Zoom Stereo Microscope System

Meiji Techno, GMZ-51 BF/DF, Trinocular Zoom Stereo Gem Microscope System with a Body Magnification of 6.7 x - 45 x

This is new trinocular zoom stereo gem microscope system with a body magnification of 6.7X/45X. This system includes a 10X eyepiece (paired) with an angled eye tube of 45°. This is a professional Jewelry GMZ system that is inclinable. This system includes a transmitted bright field / dark field slider, a U-shaped fluorescent incident top light, a iris diaphragm, and a gem clamp. The trinocular zoom body is supplied with a 10X/ 22mm paired eyepiece there is a locking pin that can secure the eyepiece in place which gives 6.7X to 45X Zoom Magnification with a 10X eyepiece engaged. The wide handled rubberized grip knobs are ergonomically placed and is very comfortable and the tension can be increased or decreased for smooth operation. The dual interpupillary distance adjustment is from 54mm -76mm. The F.O.V. (Field of View is 32.8mm – 4.9mm) as you change the zoom knobs.
