Meiji Techno HD2000C 2MP Camera, Color Digital CMOS, USB 2.0

  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

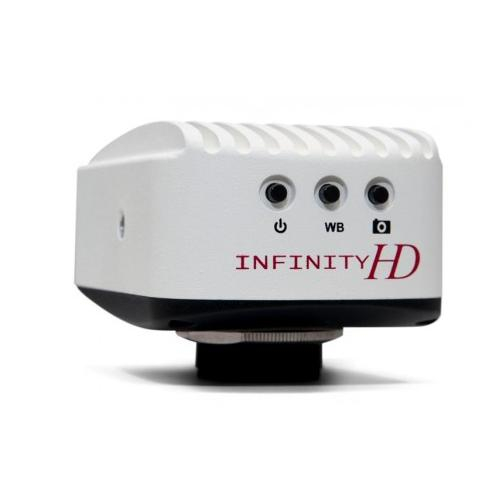

HD2000C, 2MP Camera, Color Digital CMOS, USB 2.0

Meiji Techno America’s HD2000C HD microscopy camera is a full featured, stand alone, high definition scientific imaging solution offering full 1080p60 preview with superb color reproduction and extremely fast frame rates. Operate the camera by directly connecting to an HDMI monitor without connecting to a PC, or utilize the plug and-play USB 2.0 for image capture. With extremely fast response times, the Meiji Techno America’s HD2000C HD quickly reacts to lighting changes in any life science, clinical or material application.

Features:

  • 1/3” (16:9) CMOS 2 megapixel sensor
  • 1080p60 high definition format 1920 x 1080
  • Direct output to HDMI monitor
  • 3 on-camera buttons for power, white balance and capture
  • Optional USB 2.0 output to PC
  • Meiji Techno America’s HD2000C HD software compatible with Windows XP, Vista, Windows 7, 32 and 64-bit, for image capture
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Image SensorCMOS, color, progressive scan
Optical Format1/3"
Active Area5.2 x 2.7 mm
Pixel Size2.7µm x 2.7µm
Resolution1920 x 1080 pixels
Region of Interest ControlNot applicable to HD
Frame Rate60 fps at full resolution
Bit Depth8 bit
Exposure ControlManual and automatic control
Gain ControlManual and automatic control
White BalanceOne shot automatic control
Sensitivity11,500 e-/lux/sec
Dynamic Range65dB
Full Well Capacity15,000 e-
Quantum Efficiency51% (green peak)
Read Noise8.7 e-
Dark Current Noise<60 e -/pixel/s at 60° C
Data InterfaceHDMI
Control InterfaceUSB 2.0
Lens MountAdjustable C-Mount standard
Dimensions (L x W x H)2.25 x 3.85 x 1.56 inches
Mass330g
Operating Temperature0° C to +50° C
Storage Temperature-30° C to +70° C
Operating Humidity5%-95%, Non-condensing
Shock / Vibration50 G shock, 5 G (2 to 200 Hz) vibration
Operating SystemsWindows XP, Vista, 7, 32 and 64-bit
Power Consumption~2.5 watts
Power RequirementExternal 5VDC, 500mA
Emissions CompliancesFCC Class BE, CE Certified
Hazardous MaterialsRoHS, WEEE Compliant
WarrantyOne (1) year
Recommended PC SpecsPentium 4, 1.3 GHz or higher, 512 MB RAM, 500 MB hard drive free space or more, USB 2.0 Port, Windows 7
Minimum PC Specs600 MHz Processor, 256 MB of SDRAM, 200 MB hard drive free space, USB 2.0 Port, Window XP
HD2000C2 MP Digital Camera for USB 2.0
LulNFHDSW-DVDDVD with Meiji Techno America’s HD2000C HD user application software and documentation
La2020HD2 m HDMI cable
La2030M3 m USB 2.0 A - mini B cable
La205155VDC, 2.5 A, 12.5 W power supply
HD2000C2 MP HD Color Camera
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Image SensorCMOS, color, progressive scan
Optical Format1/3"
Active Area5.2 x 2.7 mm
Pixel Size2.7µm x 2.7µm
Resolution1920 x 1080 pixels
Region of Interest ControlNot applicable to HD
Frame Rate60 fps at full resolution
Bit Depth8 bit
Exposure ControlManual and automatic control
Gain ControlManual and automatic control
White BalanceOne shot automatic control
Sensitivity11,500 e-/lux/sec
Dynamic Range65dB
Full Well Capacity15,000 e-
Quantum Efficiency51% (green peak)
Read Noise8.7 e-
Dark Current Noise<60 e -/pixel/s at 60° C
Data InterfaceHDMI
Control InterfaceUSB 2.0
Lens MountAdjustable C-Mount standard
Dimensions (L x W x H)2.25 x 3.85 x 1.56 inches
Mass330g
Operating Temperature0° C to +50° C
Storage Temperature-30° C to +70° C
Operating Humidity5%-95%, Non-condensing
Shock / Vibration50 G shock, 5 G (2 to 200 Hz) vibration
Operating SystemsWindows XP, Vista, 7, 32 and 64-bit
Power Consumption~2.5 watts
Power RequirementExternal 5VDC, 500mA
Emissions CompliancesFCC Class BE, CE Certified
Hazardous MaterialsRoHS, WEEE Compliant
WarrantyOne (1) year
Recommended PC SpecsPentium 4, 1.3 GHz or higher, 512 MB RAM, 500 MB hard drive free space or more, USB 2.0 Port, Windows 7
Minimum PC Specs600 MHz Processor, 256 MB of SDRAM, 200 MB hard drive free space, USB 2.0 Port, Window XP
HD2000C2 MP Digital Camera for USB 2.0
LulNFHDSW-DVDDVD with Meiji Techno America’s HD2000C HD user application software and documentation
La2020HD2 m HDMI cable
La2030M3 m USB 2.0 A - mini B cable
La205155VDC, 2.5 A, 12.5 W power supply
HD2000C2 MP HD Color Camera
Note

Note: Please read description carefully. Do not base your order on the picture presented.
