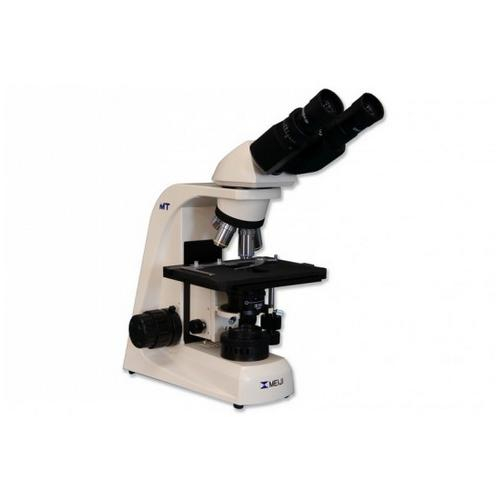

Meiji Techno, MT5200HV, Binocular Biological Veterinary Brightfield Compound Microscope. BF, Plan 4X,10X,20X, S40X,S100X oil, 30 W Halogen illuminator
Binocular Brightfield Biological LED Laboratory Series is one of our most rugged fully equipped microscope systems from Japan. To meet the demands of researchers and clinical laboratory specialists. The MT5200LV Series microscopes feature a new computer engineered rigid frame that incorporates low positioned coaxial coarse/fine focus controls and ergonomic stage design for maximum efficiency and comfort while providing and extremely stable platform. The cast aluminum alloy metal stand has a chemical resistant finish and is the most rugged, durable finish in the market today. Equipped tension adjustment controls and a built in stage stop lever to protect the specimen and objectives from accidental damage during use. The MT5200LV Series offers an outstanding range of features and optical performance with an emphasis on all newly engineered high performance U. Plan optics based on Meiji Techno’s ICOS™ Optical System (Infinity Corrected Optical System F=200mm) The new optics, provide exceptionally bright, crisp images with good color rendition and superior flat fields of view.
Eyepieces
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules.
Objective Changer
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.
Objectives
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.
Stage
Ceramic coated standard right-handed or optional left-handed controls, flat top stage 191mm x 140mm with travel: 80mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls. Available with motorized focus and stage controls.
Condenser
New design centerable Abbe 1.25 N.A. Condenser with built-in iris diaphragm in dovetail mount.
Illumination
Powerful white LED illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.
Photomicrography
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
