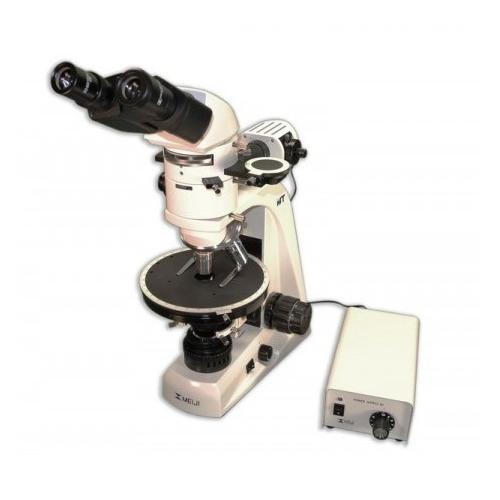

Meiji Techno, MT9920, Binocular Polarizing Microscope, Strain Free S.Plan, Halogen
Features:
- Focusable Bertrand lens (Factory installed)
- Rotatable Analyzer with 180° graduations
- Newly designed Strain free Abbe Condenser 1.25 N.A. with a swing out top lens and built in iris in a dovetail mount is easy to change and operates and tracks very smoothly and predictably facilitating accurate iris control with improved usability
- Polarizer in a Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0° and 90°
- Super Widefield compensating KHW10X, focusing eyepiece with cross-line and guide pin, F.N. 20 are standard with 21mm reticle mount
- Ergonomic Siedentopf type binocular or Trinocular viewing heads are standard
- Smooth operating ball bearing centerable nosepiece provides effortless objective changes
- Clear Observation Images with Newly improved ∞ Infinity Corrected Objectives ICOS Optical System
- Intermediate tube with built in analyzer and compensator slot and rotatable polarizer in a swing-out mount
- Ceramic coated, 175mm diameter, ball bearing, circular rotating stage graduated 360° with 1° increments and vernier reading to 0.1°. Stage equipped with easy to maintain ceramic coating allows for smooth exchange of specimens while offering maximum protection to the stage surface from abrasions and wear overtime of use. The super hard coating is durable and rugged enough to provide years of demanding use.
- Focus tension adjustment and safety Auto-focus stage stop lever
- Choice of Bright Lambertian designed LED illumination or 30 watt Koehler Halogen illumination allowing observation of clear images of polarization with automatic voltage sensing power supply 110V-240V.
- Cast Aluminum Alloy construction with chemical resistant finish
- Triangular designed frame for maximum ergonomics, greatly lessens user fatigue during hours of extended observation
Applications:
- Environmental Research - Analysis of materials, dust and fiber
- Medicine and Biology - Determining composition of calculi, sediments and bio-crystallates
- Forensics - Identification of trace elements and materials such as explosives
- Materials Analysis - Metal, ceramics, glass, building materials, etc.
- Geology - Mineralogy, petrography, core drilling sample analysis, thin section identification
- Chemistry - Quality control of in-process or end products, compounds, pharmaceutical analysis and identification of precipitates
Brightfield. The simplest of all the optical microscopy illumination techniques. Sample illumination is incident (i.e. illumination from above and observed from above) or transmitted (i.e., illuminated from below and observed from above) white light and contrast in the sample is caused by absorbance of some of the transmitted light in dense areas of the sample. Brightfield microscopy is the simplest of a range of techniques used for illumination of samples in light microscopes and its simplicity makes it a popular technique. The typical appearance of a brightfield microscopy image is a dark sample on a bright background.
Polarizing Light. A type of optical microscopy techniques involving polarized light. Simple techniques include illumination of the sample with polarized light. Directly transmitted light can, optionally, be blocked with a polarizer orientated at 90 degrees to the illumination. More complex microscopy techniques which take advantage of polarized light include differential interference contrast microscopy and interference reflection microscopy.
The MT9920 Series Incident and Transmitted Polarizing Microscope is an investigative tool for isotropic and anistropic materials. This series is the most suited in generating interference figures and in mineralogy in the scientific study of crystal structure and physical (including optical) properties of minerals. Specific studies include process of mineral origin and formation, classification of minerals, their geographic distribution as well as their utilization. Ergonomic placement of controls allows for stress free operation, increased lab efficiency and maximum productivity. Incident and Transmitted 6V 30W Koehler Halogen illuminator or LED Koehler illuminator with newly engineered high performance optics strain free ∞ Infinity Corrected objectives reduce internal strain to an absolute minimum. Our redesigned polarizing condensers with a swing out top lens helps maximize the field of view with lower power objectives to enhance performance in polarized light, yielding unmatched image contrast, provide exceptionally bright, crisp images with good color rendition and superior flat fields of view. Intermediate tube with a built in focusable Bertrand lens and a rotatable Analyzer greatly increases the quality of the image along with a compensator slot and rotatable polarizer with full wave plate.
