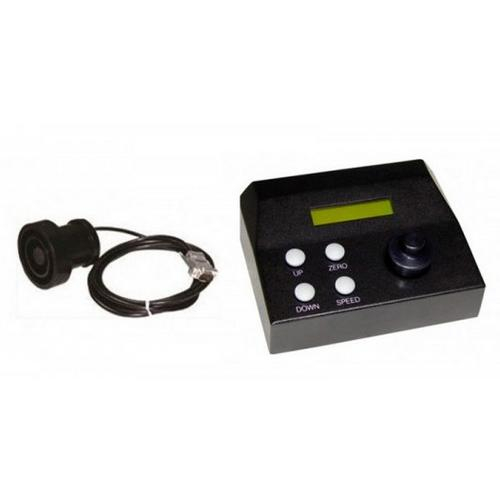

PR-ES101ZE-TC, Z-Axis N.E. Motorized Focus Control Kit for TC Invert. Biological Series
Includes:
- Controller with DigiPot (PR-ES10ZE)
- Focus Motor (PR-PS3H122R)
- Focus Sleeve fits over the Coarse focus knob which moves the fine focus
- Cables
Features:
- Compatible with Meiji Techno TC Series Biological Inverted Microscopes including the TC5100, TC5200, TC-5300, TC-5400, TC-5500 and TC5600 Series.
- No twist cable connection
- 0.002 um minimum step size.
- Easy to install.
- Up to 20Rev/s top speed.
- Compatible with: H122 or H122E Focus Motors.
- Included encoder control.
- RS232 Port.
- USB connection.
- Positional Readout.
- Manual control included
The PR-ES101ZE- TC -Optiscan Non-Encoded Z Focus only control system automated is ideally suited for routine applications wherein Z Focus movement is critical such as looking and measuring holes for burrs and imaging applications that require precise Z axis movement of the sample. Applications involving microscope automation are many and varied. The PR-ES101ZE- TC -Optiscan Non-Encoded Z Focus only control system was designed with this in mind and the result is the most flexible system commercially. Ergonomic joystick is recommended with all stage systems to provide fast, responsive control of the stage. PR-ES101ZE- TC -Optiscan Non-Encoded Z Focus only control system is your complete turnkey solution to add Z axis automation to your Meiji Techno Microscope Inverted Biological models. Ideally suited to those applications involving extended focus or Z-stacking, the PR-ES101ZE- TC offers a low cost, compact, yet powerful system to automate a microscope focusing mechanism. The controller provides a clear display showing the current position at all times while separate controls are provided for rapid movement up or down along with the facility to change the speed of the focus movement. A manual focus knob is also provided for manual fine focusing and ease of operation. The system can be used on many different microscopes including inverted and upright compound microscopes plus stereo microscopes. For the most demanding applications the PR-ES101ZE-TC will also support encoders ensuring the very best in terms of precision and accuracy. Meiji Techno has introduced a new focus only control system for modern microscopes. Ideally suited to those applications involving extended focus or Z-stacking, the PR-ES101ZE-TC offers a low cost, compact, yet powerful system to automate a microscope focusing mechanism. The controller provides a clear display showing the current position at all times while separate controls are provided for rapid movement up or down along with the facility to change the speed of the focus movement. A manual focus knob is also provided for manual fine focusing and ease of operation. The PR-ES101ZE-TC is compatible with the world’s leading imaging software packages which means it can be controlled from most imaging platforms, making extended focus images very easy to generate. The system can be used on many different microscopes including inverted and upright compound microscopes plus stereomicroscopes. For the most demanding applications PR-ES101ZE-TC will also support encoders ensuring the very best in terms of precision and accuracy. The motorized focus control from provides step sizes as small as 0.002 um, giving excellent resolution for precise and repeatable focusing in the Z-axis. For large movements when speed is required, the focus motor can be driven at speeds of up to 20 revolutions per second. The drive has a rotating cable system, designed to prevent the cable from twisting around the drive.
