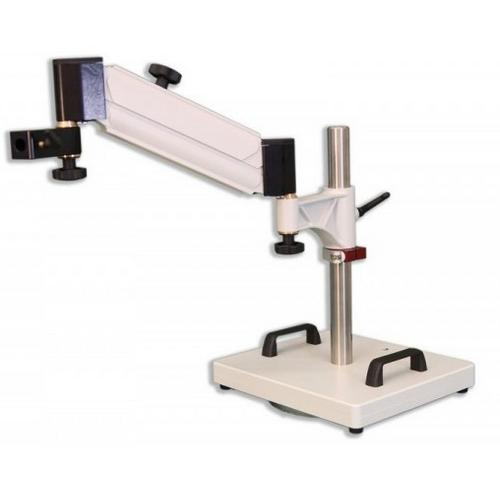

SAS-3, Articulated Arm Stand with 5/8" Bonder Pin Acceptance with 31" Reach
Features:
- SAS-3 Articulating heavy duty industrial-type boom stand comes with a OS-LAEA (Lift Arm End Adapter) which accommodates focus blocks with a 5/8” bonder pin dowel which perfectly complements our EMZ (Zoom), EMT (Turret), EMF (Fixed) Series Stereo Microscope with the proper FS or FSC tilting focus blocksLift Articulating Arm offers the greatest amount of reach along with ease to vertical positioning
- If one of your main requirements is to have the ability to tilt the microscope at an angle the SAS-3 will be a perfect fit for your laboratory
- Total arm length gives the user a total of 31” from the center of the vertical pole to the center of the focus block
- 406.4mm (16”) vertical pole
- Minimal space requirement and greatest possible amount stability for EM Series stereo system up to 30 lbs
- No loss of stability even at its furthest travel
- The SAS-3 can swing out of the way easily, clearing the workstation for other tasks
- Vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies
- Anti-rotation is stabilized by a locking pin on the vertical post
- Safety Collar for vertical and horizontal stability
- SAS-3 is equipped by a 80 lb base
- Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless steel columns make this boom stand an excellent choice in labs and production facilities
- High density rubber feet for vibration stability
The SAS-3 Articulated Arm Stand is a heavy duty industrial-type boom stand comes with a OS-LAEA (Lift Arm End Adapter) which accommodates focus blocks with a 5/8” bonder pin dowel which perfectly complements ourEMZ (Zoom), EMT (Turret), EMF (Fixed) Series Stereo Microscope with the proper FS or FSC tilting focus blocks. If one of your main requirements is to have the ability to tilt the microscope at an angle the SAS-3 will be a perfect fit for your laboratory. Lift Articulating Arm offers the greatest amount of reach along with ease to vertical positioning. The total arm length gives the user a total of 31” from the center of the vertical pole to the center of the focus block. Approximately 15 inches vertical travel, plus/minus 7.5 inches from horizontal, is controlled via an adjustable gas spring counter balance providing a "safe" lift and descent. The counter balance also allows "free floating" of objects from 0- 20 lbs. An ambidextrous vertical position lock is provided. The arm accepts the industry standard 5/8" "Bonder" pin focus blocks, equipped with a OS-LAEA (Lift Arm End Adapter. The SAS-3 provides complete flexibility for smooth left to right horizontal and vertical movement and adjustment. The SAS-3 flexibility, allows it to glide over the work surface with none of the binding inherent in other boom stands. It is now possible to scan a large flat area at an angle, such as a printed circuit board, by simply guiding the microscope with your hands. There is zero friction motion from precision machined into cast housings along with a sturdy solid 80 lbs. metal 13 inch x 13 inch x 1.5 inch base with heavy duty rubber feet and ergonomic handles provides an excellent solution for heavy duty and industrial applications requiring smooth friction free travel. The SAS-3 Articulating Heavy Duty Boom Stand is most popular Ergonomic boom stand with vertical pillar, articulating arm and a 5/8” bonder pin mount which fits industry standard focus blocks with a 5/8” bonder pin dowel. The SAS-3 is equipped with a 406.4mm (16”) vertical pole. The SAS-3 offers minimal space requirement and greatest possible amount stability for EM stereo system up to 30 lbs. There is no loss of stability even at its furthest travel. The SAS-3 can swing out of the way easily, clearing the workstation for other tasks. The horizontal arm can be moved freely and smoothly left to right or can be securely locked into position with our spring loaded handle knobs. The vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies. Anti-rotation is stabilized by a locking pin on the vertical post. The SAS-3 Articulating Heavy Duty Boom stand provides a comfortable amount of space for large Solar panels to large semiconductor and electrical components. The SAS-3 is supported by a 80.00 lbs. base. This boom stand is an affordable; low cost with high quality safety features makes this boom stand unmatched value in its class. This stand has ample height and long reach to work on an inspect small to large parts under the microscope. Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless steel columns make this boom stand an excellent choice in labs and production facilities.
