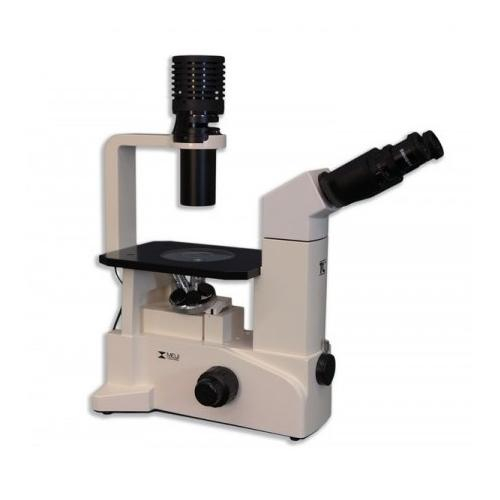

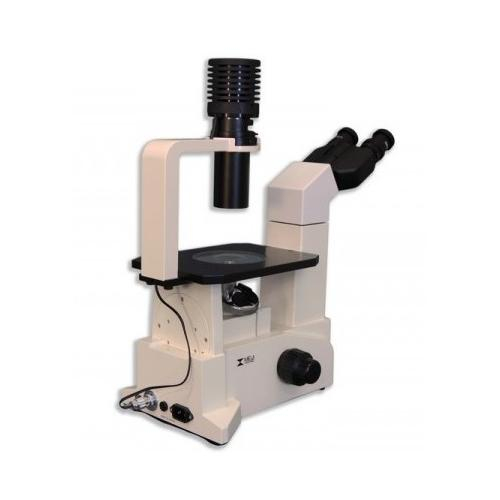

Meiji Techno, TC-5100, Binocular Inverted Brightfield Biological Microscope, 6V 30W Halogen
Features:
- Seidentopf type binocular head inclined at 30°
- Equipped with 6V, 30W Halogen lamp illuminator
- N.A. 0.30 condenser
- 180mm(X) X 245mm(Y) stage with replaceable glass insert with 45mm opening
- Exchangeable observation tubes
- Integrated Automatic Voltage Sensing Power Supply with localized power cord
- Compact wedge shaped cast aluminum alloy frame for exceptional stability and a small footprint
- Chemical resistant baked enamel finish
- Flexible and modular design for system expansion
- Transparent stage plate for easy objective identification
- Low profile coaxial and fine focus controls with tension adjustment
- Precentered 30W Halogen bulb
- Front mounted CCD, analog or SLR cameras
- Integrated Automatic Voltage Sensing Power Supply with localized power cord
Brightfield. The simplest of all the optical microscopy illumination techniques. Sample illumination is transmitted (i.e., illuminated from below and observed from above) white light and contrast in the sample is caused by absorbance of some of the transmitted light in dense areas of the sample. Brightfield microscopy is the simplest of a range of techniques used for illumination of samples in light microscopes and its simplicity makes it a popular technique. The typical appearance of a brightfield microscopy image is a dark sample on a bright background. The TC-5100 Series inverted biological microscopes have been designed to be versatile, modular, ergonomic, system ideal for use in research, educational and clinic applications. The TC-5100 are well suited for wide variety of routine examination of tissue culture, precipitates and high resolution video microscopy. The TC-5100 Series microscopes deliver crisp, distortion-free, high resolution images in multiple modes of operation.
