PolyScience 3370TBA12E – 1.1Gal Cooler w/ Turbine Pump Pump Type: Turbine, Voltage: 240V / 50 Hz

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

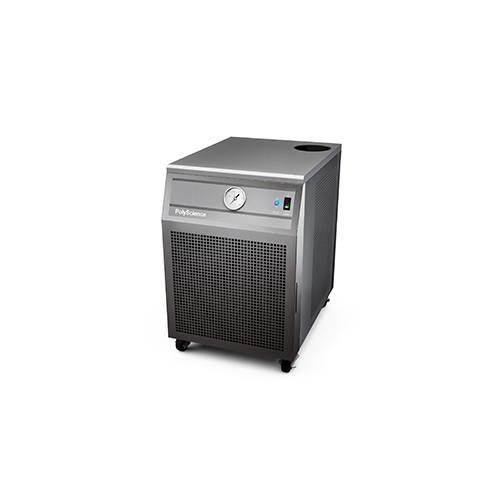

PolyScience, 3370TBA12E, 3370 Series 1.1Gal Liquid-to-Air Cooler w/ 1/3 HP Turbine Pump, 4.5 gpm Max Flow

Includes:

Features:

An economical solution for applications where cooling fluid temperature is higher than ambient and temperature control is not required
Quiet liquid-to-air cooling
Positive displacement or turbine pump
Built-in low liquid level indicator

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Working Temperature Range °F	Ambient +10° to 158°
Working Temperature Range °C	Ambient +5° to 70°C
Reservoir Capacity (gallons)	1.11
Reservoir Capacity (liters)	4.2
Reservoir Cover	Screw-on Cap
Cleanable Air Filter	Yes
Cleanable Fluid Filter	Yes
Pump Type	Turbine
Pump Speed	Constant, Single Speed
Process Connections	1/2" (F) NPT
Reservoir Liquid Level Indicator	Yes
Reservoir Drain	Yes
Maximum Ambient Temperature °F	95°
Maximum Ambient Temperature °C	35°
Overall Dimensions (L x W x H) (inches)	20.5 x 15 x 22.3 in
Overall Dimensions (L x W x H) (cm)	52 x 38.1 x 54.6 cm
Shipping Weight (pounds)	132.0
Shipping Weight (kilograms)	59.9
Maximum Pressure (psi)	50.0
Maximum Pressure (bar)	3.40
Maximum Pressure Flow Rate (gpm)	4.50
Maximum Pressure Flow Rate (l/min)	17.1
Cooling Capacity @ 20°C (W)	500 based on 2°C ΔT 1000 based on 4°C ΔT 2000 based on 8°C ΔT 3000 based on 10°C ΔT 4000 based on 11°C ΔT ΔT = Process water temperature - ambient air temperature
Electrical Requirements (VAC/Hz/Ph/A)	240/50/1/3
Regulatory Approvals	CE

Working Temperature Range °F	Ambient +10° to 158°
Working Temperature Range °C	Ambient +5° to 70°C
Reservoir Capacity (gallons)	1.11
Reservoir Capacity (liters)	4.2
Reservoir Cover	Screw-on Cap
Cleanable Air Filter	Yes
Cleanable Fluid Filter	Yes
Pump Type	Turbine
Pump Speed	Constant, Single Speed
Process Connections	1/2" (F) NPT
Reservoir Liquid Level Indicator	Yes
Reservoir Drain	Yes
Maximum Ambient Temperature °F	95°
Maximum Ambient Temperature °C	35°
Overall Dimensions (L x W x H) (inches)	20.5 x 15 x 22.3 in
Overall Dimensions (L x W x H) (cm)	52 x 38.1 x 54.6 cm
Shipping Weight (pounds)	132.0
Shipping Weight (kilograms)	59.9
Maximum Pressure (psi)	50.0
Maximum Pressure (bar)	3.40
Maximum Pressure Flow Rate (gpm)	4.50
Maximum Pressure Flow Rate (l/min)	17.1
Cooling Capacity @ 20°C (W)	500 based on 2°C ΔT 1000 based on 4°C ΔT 2000 based on 8°C ΔT 3000 based on 10°C ΔT 4000 based on 11°C ΔT ΔT = Process water temperature - ambient air temperature
Electrical Requirements (VAC/Hz/Ph/A)	240/50/1/3
Regulatory Approvals	CE

Note: Please read description carefully. Do not base your order on the picture presented.
