Sensorex SSRE-T-MA/DR/500 – Smart Remote Electronic, 4-20 mA, DIN Rail Form Factor: DIN Rail, Interface: 4-20mA

info@LabEquipmentDepot.com

+1 (838) 222-2032
+1 (718) 504-5719 (Intl.)

Options and Related Products

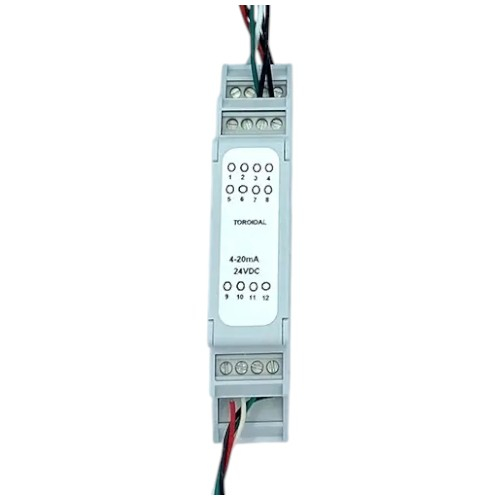

Sensorex, SSRE-T-MA/DR/500, Smart Remote Electronics, Toroidal Conductivity, 4-20 mA Output, DIN Rail

Features:

Convert Analog Sensors into Smart Sensors:
- Reduce inventory by stocking analog sensors and wiring them to remote electronics to output a digital communication signal (4-20 mA or Modbus)
- Save on costs by only replacing the sensor; keep remote electronics and cabling in place
- Improve environmental impact by eliminating electronic waste after the sensor's end of life
Compatible with a Comprehensive Set of Measurements:
- pH/ORP, Contacting Conductivity, Toroidal Conductivity, and Dissolved Oxygen
- Simple wiring for each measurement type
Interface module for DIN Rail installation

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Operating Temperature Range	5° - 70° C (41° - 158° F)
Measuring Range pH	0-14
Measuring Range ORP	-1500 to + 1500mV
Measurement Type	Toroidal Conductivity
Remote Electronics Form Factor	DIN Rail
Communication	4-20 mA
Dimensions	2.39"H x 3.54"L x 0.70"W (50.6mm x 89.8mm x 17.8mm)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Operating Temperature Range	5° - 70° C (41° - 158° F)
Measuring Range pH	0-14
Measuring Range ORP	-1500 to + 1500mV
Measurement Type	Toroidal Conductivity
Remote Electronics Form Factor	DIN Rail
Communication	4-20 mA
Dimensions	2.39"H x 3.54"L x 0.70"W (50.6mm x 89.8mm x 17.8mm)

Note: Please read description carefully. Do not base your order on the picture presented.
