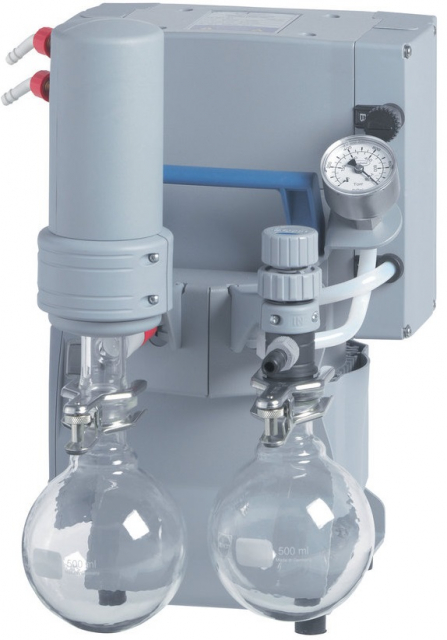

Vacuubrand, 20737003, PC201 NT Oil-Free Vacuum System w/US Plug & 3.4/3.8 m3/h Max Speed, 100-120V
BrandTech® is the official distribution arm for the US and Canada of the VACUUBRAND products.
PC201 NT Oil-Free Single Application Vacuum System with US Plug, 100-115V (50-60 Hz), 120V (60 Hz)
This chemistry pumping unit has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Typical applications are rotary evaporators, vacuum concentrators and vacuum drying ovens with high boiling solvents. The manual flow control valve regulates the effective pumping speed at the vacuum connection; the vacuum manometer offers an analog vacuum display. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The exhaust waste vapor condenser enables near-100-percent solvent recovery. Pumping unit completely mounted, ready for use, with manual.
Features:
- Outstanding chemical resistance and superior vapor tolerance
- Exceptionally high performance even at low vacuum
- Excellent ultimate vacuum even with gas ballast
- Manual vacuum control, analog vacuum display
- Excellent environmental friendliness due to efficient solvent recovery
Examples of use for this vacuum pump:
- Rotary evaporator / parallel evaporator
- Vacuum concentrators
- Drying chambers
- Gel dryer
